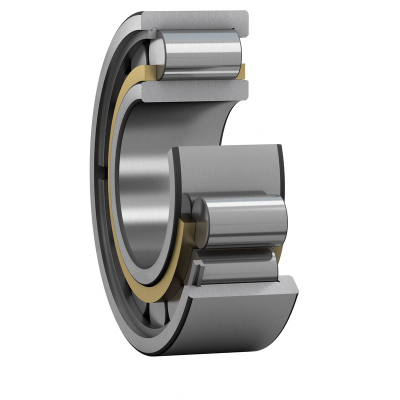

NUH 2334 ECMH/PEX
Part Number | NUH 2334 ECMH/PEX |
Brand: LILY | |
Equivalent: SKF |
System of Measurement | Metric |
Roller Bearing Type | Cylindrical |
For Load Direction | Combined |
Construction | Single Row |
Inner Ring Type | With Inner Ring |
Seal Type | Open |
Bore Dia | 170 mm |
Bore Dia Tolerance | -0.025mm to 0 |
Outer Dia | 360 mm |
Outer Dia Tolerance | -0.04mm to 0 |
Width | 120 mm |
Width Tolerance | -0.25mm to 0 |
Shoulder Dia Outer Ring | 300.2 mm |
Raceway Diameter Inner Ring | 216 mm |
Chamfer Dimension r1,2(min.) | 4 mm |
Permissible Axial Displacement(max.) | 3.8 mm |
Ring Material | Chrome Steel |
Roller Material | Chrome Steel |
Cage Material | Machined brass cage, inner ring raceway centred |
Dynamic Radial Load | 396000 lbf |
Static Radial Load | 495000 lbf |
Max Speed (X1000 rpm) | 2 |
Lubrication | Grease, Oil |
Temperature Range | -30° to 110 °C |
RoHS | Compliant |
REACH | Compliant |
Weight | 59.4 kg |
