NUH 2226 ECMH
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | NUH 2226 ECMH |
Brand: LILY  |
Interchangeable With: SKF |
Characteristics |
|
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| Seal Type | Open |
| Inner Ring Type | With Inner Ring |
| For Load Direction | Combined |
| Construction | Single Row |
Dimensions |
|
| Bore Dia | 130 mm |
| Bore Dia Tolerance | -0.025mm to 0 |
| Outer Dia | 230 mm |
| Outer Dia Tolerance | -0.03mm to 0 |
| Width | 64 mm |
| Width Tolerance | -0.25mm to 0 |
| Shoulder Dia Of Outer Ring | 200.3 mm |
| Permissible Axial Displacement(max.) | 2.6 mm |
| Raceway Diameter Of Inner Ring | 153.5 mm |
| Chamfer Dimension r1,2(min.) | 3 mm |
Material |
|
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage Material | Machined brass cage, inner ring raceway centred |
Performance |
|
| Dynamic Radial Load | 141750 lbf |
| Static Radial Load | 175500 lbf |
| Max Speed (X1000 rpm) | 3 |
| Temperature Range | -30° to 110 °C |
Properties |
|
| Lubrication | Grease, Oil |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 11 kg |

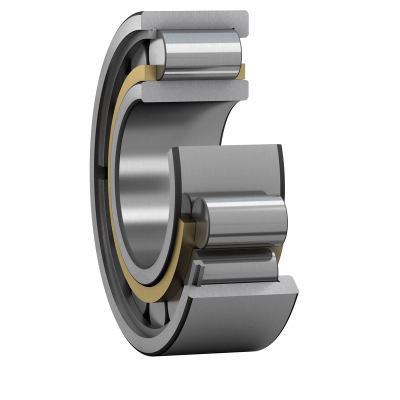

Design Features of NUH 2226 ECMH Bearing
NUH 2226 ECMH Bearing features a larger diameter roller and an optimized roller profile to enhance load-carrying capacity and overall performance. NUH 2226 ECMH outer dia is 230 mm. Its bore dia is 130 mm. Its robust design includes a wide inner and outer ring, an advanced cage design, and effective lubrication features, making it ideal for demanding applications in industries such as manufacturing and heavy machinery.
What Benefits Can NUH 2226 ECMH Bearing Provide?
- Enhanced Load Capacity: Its larger roller diameter allows it to support higher loads, making it suitable for heavy-duty applications.
- Increased Rigidity: The design provides high stiffness, which is essential for applications requiring precise positioning and minimal deformation.
- Improved Durability: Constructed from high-quality materials, it is resistant to wear and fatigue, leading to a longer service life.
- Effective Heat Dissipation: The optimized design helps to manage heat generation, reducing the risk of overheating and failure during operation.
- Reduced Maintenance Needs: With enhanced lubrication features and robust construction, it requires less frequent maintenance, leading to increased operational efficiency.
What Can NUH 2226 ECMH Bearing Be Used for?
- Industrial Gearboxes: Commonly employed in gearboxes to support high radial loads and provide smooth operation.
- Heavy Machinery: Suitable for construction and mining equipment, where it can withstand the stresses of heavy-duty applications.
- Machine Tools: Used in precision machine tools to ensure accurate positioning and high rigidity during operation.
- Wind Turbines: Found in the rotor and gearbox assemblies, accommodating both radial and axial loads while maintaining reliability.
- Automotive Applications: Used in various automotive components, such as transmission systems, to handle high loads and improve performance.
