NU 1040 ML
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | NU 1040 ML |
Brand: LILY  |
Interchangeable With: SKF |
Characteristics |
|
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| Seal Type | Open |
| Inner Ring Type | With Inner Ring |
| For Load Direction | Combined |
| Construction | Single Row |
Dimensions |
|
| Bore Dia | 200 mm |
| Bore Dia Tolerance | -0.03mm to 0 |
| Outer Dia | 310 mm |
| Outer Dia Tolerance | -0.035mm to 0 |
| Width | 51 mm |
| Width Tolerance | -0.30mm to 0 |
| Shoulder Dia Of Outer Ring | 269 mm |
| Permissible Axial Displacement(max.) | 7 mm |
| Raceway Diameter Of Inner Ring | 229 mm |
| Chamfer Dimension r1,2(min.) | 2.1 mm |
| Chamfer Dimension r3,4(min.) | 2.1 mm |
Material |
|
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage Material | Brass cage, inner or outer ring centred |
Performance |
|
| Dynamic Radial Load | 99000 lbf |
| Static Radial Load | 128250 lbf |
| Max Speed (X1000 rpm) | 4 |
| Temperature Range | -30° to 110 °C |
Properties |
|
| Lubrication | Grease, Oil |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 13.9 kg |

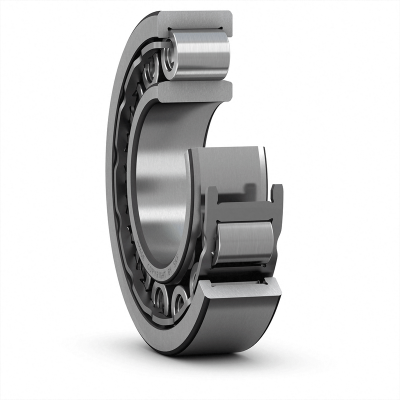

Design Features of NU 1040 ML Bearing
NU 1040 ML Bearing features a single row of cylindrical rollers that offer high radial load capacity and low friction for efficient performance. NU 1040 ML outer dia is 310 mm. Its bore dia is 200 mm. The inclusion of an inner ring ensures precise alignment, providing stability and smooth rotation under varying load conditions, making it suitable for applications requiring robust and reliable support.
What Benefits Can NU 1040 ML Bearing Provide?
- High Load Capacity: The design supports high radial loads, making it ideal for heavy-duty applications.
- Low Friction: Reduced friction enhances efficiency and extends the lifespan of the bearing.
- Compact Design: The single row configuration allows for a more compact bearing, saving space in machinery.
- Improved Stability: The inner ring ensures precise alignment, providing smooth and stable operation.
- Durability: The bearing is built for long-lasting performance under demanding conditions.
- Versatility: Suitable for a wide range of applications, from industrial machinery to automotive systems.
What Can NU 1040 ML Bearing Be Used for?
- Industrial Machinery: Used in heavy-duty machines like pumps, compressors, and gearboxes to handle high radial loads.
- Automotive Industry: Found in engines, transmissions, and wheel hubs, providing reliable support under varying load conditions.
- Single Row Equipment: Used in machinery such as cranes and excavators, which require bearings that can handle high loads and rough conditions.
- Mining Equipment: Essential for equipment like conveyors and crushers, where high load-bearing capacity is needed.
- Electric Motors: Provides stable support for the rotor, reducing friction and improving efficiency.
- Agricultural Equipment: Used in machines like tractors and harvesters to ensure smooth operation under tough conditions.
