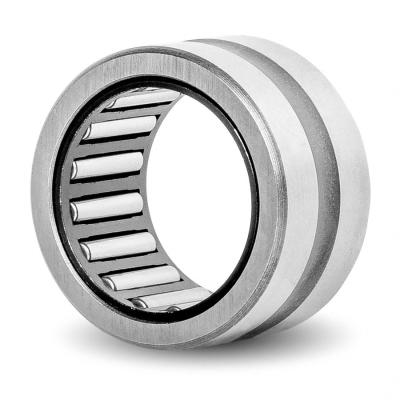

NK90/35-XL
Part Number | NK90/35-XL |
Brand: LILY | |
Equivalent: Schaeffler (INA) |
System of Measurement | Metric |
Bearing Type | Roller |
Roller Bearing Type | Needle |
For Load Direction | Radial |
Construction | Single Row |
Seal Type | Open |
Inner Ring | No |
Series | Without Inner Ring |
Bore Dia | 90 mm |
Bore Dia Tolerance | 0.036mm to 0.058mm |
Outer Dia | 110 mm |
Outer Dia Tolerance | -0.015mm to 0 |
Width | 35 mm |
Width Tolerance | -0.2mm to 0 |
Chamfer Dimension | 1mm |
Ring Material | Steel |
Cage Material | Steel |
Roller Material | Steel |
Dynamic Radial Load | 26100 lbf |
Static Radial Load | 46800 lbf |
Max Speed (X1000 rpm) | 5.1 |
Lubrication | Required |
Shaft Mount Type | Press Fit |
Temperature Range | -20 to 110 °C |
RoHS | Compliant |
Weight | 630 g |
INTERCHANGE
The LILY bearing part series NK90/35-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
INA WITH INNER RING NKI
IKO WITHOUT INNER RING TAF
IKO WITH INNER RING TAFI
SKF WITHOUT INNER RING NK
SKF WITH INNER RING NKI
FAG WITHOUT INNER RING NK
FAG WITH INNER RING NKJ
LNK90/35-XL
NK 90/35
NKI 80/35
TAF 9011035
TAFI 8011035
NK 90/35
NKI 80/35
NK 90/35 A
NKJ 80/35 A
