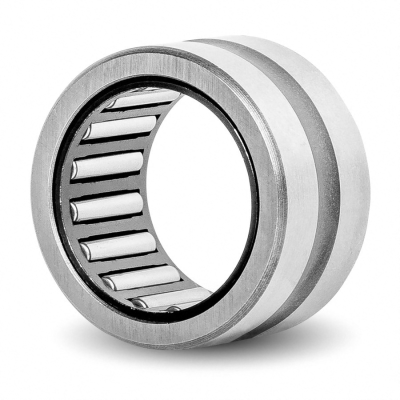

NK85/35-XL
| Part Number | NK85/35-XL |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Inner Ring | No |
| Series | Without Inner Ring |
| Bore Dia | 85 mm |
| Bore Dia Tolerance | 0.036mm to 0.058mm |
| Outer Dia | 105 mm |
| Outer Dia Tolerance | -0.015mm to 0 |
| Width | 35 mm |
| Width Tolerance | -0.2mm to 0 |
| Chamfer Dimension | 1mm |
| Ring Material | Steel |
| Cage Material | Steel |
| Roller Material | Steel |
| Dynamic Radial Load | 24975 lbf |
| Static Radial Load | 43425 lbf |
| Max Speed (X1000 rpm) | 5.4 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight | 600 g |
})
INTERCHANGE
The LILY bearing part series NK85/35-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
INA WITH INNER RING NKI
IKO WITHOUT INNER RING TAF
IKO WITH INNER RING TAFI
SKF WITHOUT INNER RING NK
SKF WITH INNER RING NKI
FAG WITHOUT INNER RING NK
FAG WITH INNER RING NKJ
LNK85/35-XL
NK 85/35
NKI 75/35
TAF 8510535
TAFI 7510535
NK 85/35
NKI 75/35
NK 85/35 A
NKJ 75/35 A
