NK68/35-XL

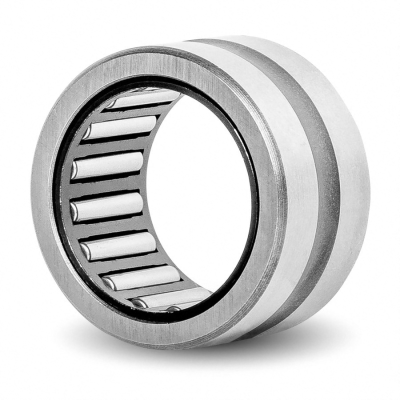

NK68/35-XL Heavy Duty Needle Roller Bearings (Machined)
Part Number NK68/35-XL
Brand: LILY
|
Equivalent: Schaeffler (INA)
System of Measurement Metric
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
Seal Type Open
Inner Ring No
Series Without Inner Ring
Bore Dia 68 mm
Bore Dia Tolerance 0.03mm to 0.049mm
Outer Dia 82 mm
Outer Dia Tolerance -0.015mm to 0
Width 35 mm
Width Tolerance -0.15mm to 0
Chamfer Dimension 0.6mm
Ring Material Steel
Cage Material Steel
Roller Material Steel
Dynamic Radial Load 15750 lbf
Static Radial Load 31275 lbf
Max Speed (X1000 rpm) 6.8
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight 338 g
NK68/35-XL Heavy Duty Needle Roller Bearings (Machined) cad drawing

Request a Quote

*
*
*
Allow file formats (gif、jpeg、jpg、png、pdf、txt、doc、xls、xlsx、docx)
INTERCHANGE
The LILY bearing part series NK68/35-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
INA WITH INNER RING NKI
IKO WITHOUT INNER RING TAF
IKO WITH INNER RING TAFI
SKF WITHOUT INNER RING NK
SKF WITH INNER RING NKI
FAG WITHOUT INNER RING NK
FAG WITH INNER RING NKJ
LNK68/35-XL
NK 68/35
NKI 60/35
TAF 688235
TAFI 608235
NK 68/35
NKI 60/35
NK 68/35 A
NKJ 60/35 A
