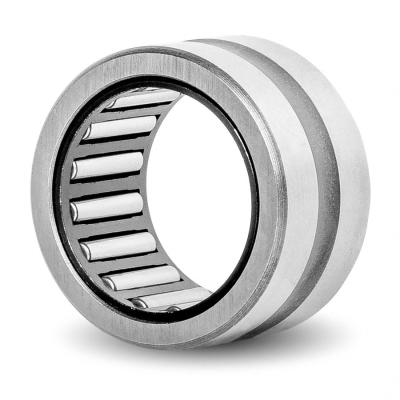

NK65/35-XL
Part Number | NK65/35-XL |
Brand: LILY | |
Equivalent: Schaeffler (INA) |
System of Measurement | Metric |
Bearing Type | Roller |
Roller Bearing Type | Needle |
For Load Direction | Radial |
Construction | Single Row |
Seal Type | Open |
Inner Ring | No |
Series | Without Inner Ring |
Bore Dia | 65 mm |
Bore Dia Tolerance | 0.03mm to 0.049mm |
Outer Dia | 78 mm |
Outer Dia Tolerance | -0.013mm to 0 |
Width | 35 mm |
Width Tolerance | -0.15mm to 0 |
Chamfer Dimension | 0.6mm |
Ring Material | Steel |
Cage Material | Steel |
Roller Material | Steel |
Dynamic Radial Load | 14850 lbf |
Static Radial Load | 31950 lbf |
Max Speed (X1000 rpm) | 7.2 |
Lubrication | Required |
Shaft Mount Type | Press Fit |
Temperature Range | -20 to 110 °C |
RoHS | Compliant |
Weight | 310 g |
INTERCHANGE
The LILY bearing part series NK65/35-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
IKO WITHOUT INNER RING TAF
SKF WITHOUT INNER RING NK
FAG WITHOUT INNER RING NK
LNK65/35-XL
NK 65/35
TAF 657835
NK 65/35
NK 65/35 A
