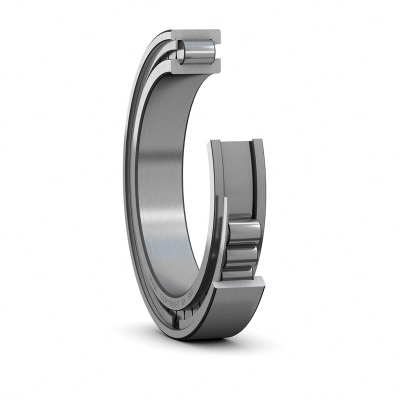

NCF 3005 CV
| Part Number | NCF 3005 CV |
Brand: LILY  | |
Equivalent: SKF |
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| For Load Direction | Combined |
| Construction | Single Row Full Complement |
| Inner Ring Type | With Inner Ring |
| Seal Type | Open |
| Bore Dia | 25 mm |
| Bore Dia Tolerance | -0.01mm to 0 |
| Outer Dia | 47 mm |
| Outer Dia Tolerance | -0.011mm to 0 |
| Width | 16 mm |
| Width Tolerance | -0.12mm to 0 |
| Shoulder Diameter Inner Ring | 34 mm |
| Shoulder Diameter Outer Ring | 39 mm |
| Raceway Diameter Outer Ring | 42.51 mm |
| Chamfer Dimension r1,2(min.) | 0.6 mm |
| Chamfer Dimension r3,4(min.) | 0.3 mm |
| Permissible Axial Displacement(max.) | 1.5 mm |
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage Material | Full complement of rollers (no cage) |
| Dynamic Radial Load | 7178 lbf |
| Static Radial Load | 7988 lbf |
| Max Speed (X1000 rpm) | 9 |
| Lubrication | Grease, Oil |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.12 kg |
