NAO25X42X32-ZW-ASR1-XL

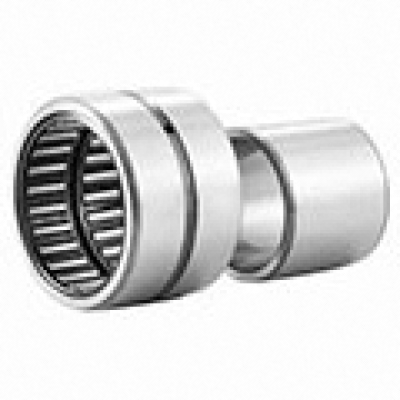

NAO25X42X32-ZW-ASR1-XL Heavy Duty Needle Roller Bearings (Machined)
Part Number NAO25X42X32-ZW-ASR1-XL
Brand: LILY
|
Equivalent: Schaeffler (INA)
System of Measurement Metric
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Double Row
Seal Type Open
Inner Ring Yes
Series With Inner Ring
Bore Dia 25 mm
Bore Dia Tolerance -0.01mm to 0
Outer Dia 42 mm
Outer Dia Tolerance -0.011mm to 0
Width 32 mm
Width Tolerance -0.12mm to 0
Chamfer Dimension 0.3 mm
E 37 mm
F 30 mm
Ring Material Steel
Cage Material Steel
Roller Material Steel
Dynamic Radial Load 10125 lbf
Static Radial Load 15075 lbf
Max Speed (X1000 rpm) 14.6
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight 190 g
NAO25X42X32-ZW-ASR1-XL Heavy Duty Needle Roller Bearings (Machined) cad drawing

Request a Quote

*
*
*
Allow file formats (gif、jpeg、jpg、png、pdf、txt、doc、xls、xlsx、docx)
INTERCHANGE
The LILY bearing part series NAO25X42X32-ZW-ASR1-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
INA WITH INNER RING NKI
IKO WITHOUT INNER RING TAF
IKO WITH INNER RING TAFI
SKF WITHOUT INNER RING NK
SKF WITH INNER RING NKI
FAG WITHOUT INNER RING NK
FAG WITH INNER RING NKJ
LNAO25X42X32-ZW-ASR1-XL
NAO 25×42×32
RNAO 30×42×32
NAF 254232
RNAF 304232
NAO 25×42×32
RNAO 30×42×32
NAO 25×42×32
RNAO 30×42×32
