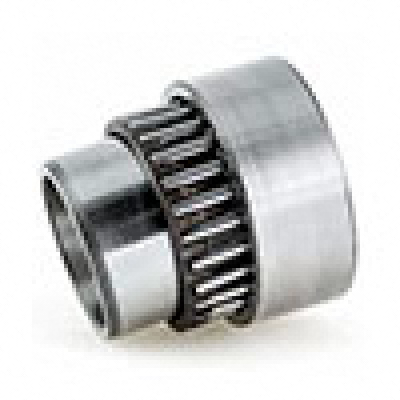

NAO25X42X16-IS1-XL
| Part Number | NAO25X42X16-IS1-XL |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Inner Ring | Yes |
| Series | With Inner Ring |
| Bore Dia | 25 mm |
| Bore Dia Tolerance | -0.01mm to 0 |
| Outer Dia | 42 mm |
| Outer Dia Tolerance | -0.011mm to 0 |
| Width | 16 mm |
| Width Tolerance | -0.12mm to 0 |
| Chamfer Dimension | 0.3 mm |
| E | 37 mm |
| F | 30 mm |
| Ring Material | Steel |
| Cage Material | Steel |
| Roller Material | Steel |
| Dynamic Radial Load | 5850 lbf |
| Static Radial Load | 7538 lbf |
| Max Speed (X1000 rpm) | 14.6 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight | 86 g |
})
INTERCHANGE
The LILY bearing part series NAO25X42X16-IS1-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
INA WITH INNER RING NKI
IKO WITHOUT INNER RING TAF
IKO WITH INNER RING TAFI
SKF WITHOUT INNER RING NK
SKF WITH INNER RING NKI
FAG WITHOUT INNER RING NK
FAG WITH INNER RING NKJ
LNAO25X42X16-IS1-XL
NAO 25×42×16
RNAO 30×42×16
NAF 254216
RNAF 304216
NAO 25×42×16
RNAO 30×42×16
NAO 25×42×16
RNAO 30×42×16
