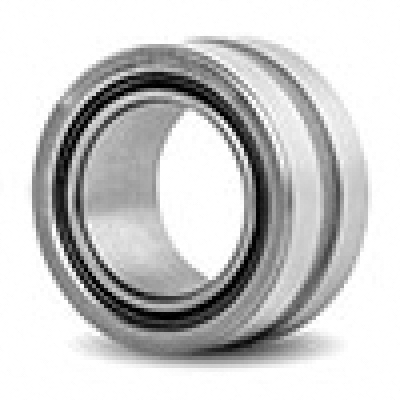

NA4905-RSR-XL
| Part Number | NA4905-RSR-XL |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Single Seal |
| Inner Ring | Yes |
| Series | With Inner Ring |
| Bore Dia | 25 mm |
| Bore Dia Tolerance | -0.01mm to 0 |
| Outer Dia | 42 mm |
| Outer Dia Tolerance | -0.011mm to 0 |
| Width | 18 mm |
| Width Tolerance | -0.12mm to 0 |
| Chamfer Dimension | 0.3 mm |
| F | 30 mm |
| Ring Material | Steel |
| Cage Material | Steel |
| Roller Material | Steel |
| Dynamic Radial Load | 4905 lbf |
| Static Radial Load | 5445 lbf |
| Max Speed (X1000 rpm) | 8.6 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight | 89.5 g |
| C | 17 mm |
})
