NA4904-XL

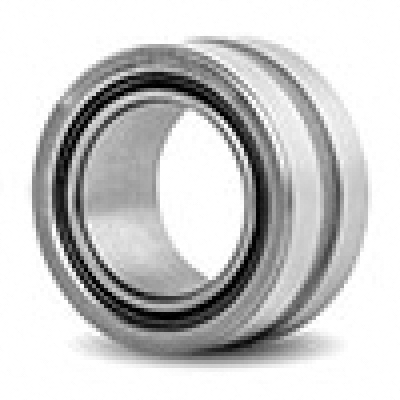

NA4904-XL Heavy Duty Needle Roller Bearings (Machined)
Part Number NA4904-XL
Brand: LILY
|
Equivalent: Schaeffler (INA)
System of Measurement Metric
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
Seal Type Open
Inner Ring Yes
Series With Inner Ring
Bore Dia 20 mm
Bore Dia Tolerance -0.01mm to 0
Outer Dia 37 mm
Outer Dia Tolerance -0.011mm to 0
Width 17 mm
Width Tolerance -0.12mm to 0
Chamfer Dimension 0.3 mm
F 25 mm
Ring Material Steel
Cage Material Steel
Roller Material Steel
Dynamic Radial Load 5332 lbf
Static Radial Load 5738 lbf
Max Speed (X1000 rpm) 16.9
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight 75.2 g
NA4904-XL Heavy Duty Needle Roller Bearings (Machined) cad drawing

Request a Quote

*
*
*
Allow file formats (gif、jpeg、jpg、png、pdf、txt、doc、xls、xlsx、docx)
INTERCHANGE
The LILY bearing part series NA4904-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
INA WITH INNER RING NKI
IKO WITHOUT INNER RING TAF
IKO WITH INNER RING TAFI
SKF WITHOUT INNER RING NK
SKF WITH INNER RING NKI
FAG WITHOUT INNER RING NK
FAG WITH INNER RING NKJ
LNA4904-XL
NA 4904
RNA 4904
NA 4904
RNA 4904
NA 4904
RNA 4904
NA 4904
RNA 4904
