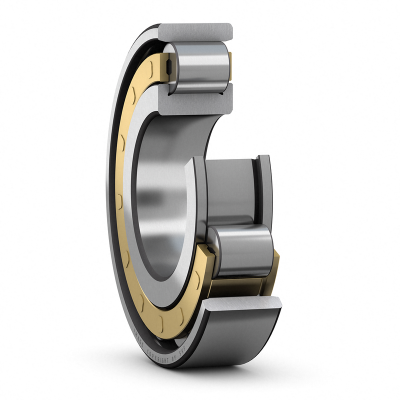

N 322 ECM
| Part Number | N 322 ECM |
Brand: LILY  | |
Equivalent: SKF |
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| For Load Direction | Combined |
| Construction | Single Row |
| Inner Ring Type | With Inner Ring |
| Seal Type | Open |
| Bore Dia | 110 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| Outer Dia | 240 mm |
| Outer Dia Tolerance | -0.03mm to 0 |
| Width | 50 mm |
| Width Tolerance | -0.20mm to 0 |
| Shoulder Diameter Of Inner Ring | 155 mm |
| Raceway Diameter Of Outer Ring(E) | 211 mm |
| Chamfer Dimension r1,2(min.) | 3 mm |
| Chamfer Dimension r3,4(min.) | 3 mm |
| Permissible Axial Displacement(max.) | 3 mm |
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage Material | Brass cage, roller centred |
| Dynamic Radial Load | 119250 lbf |
| Static Radial Load | 121500 lbf |
| Max Speed (X1000 rpm) | 3 |
| Lubrication | Grease, Oil |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 11.5 kg |
})
