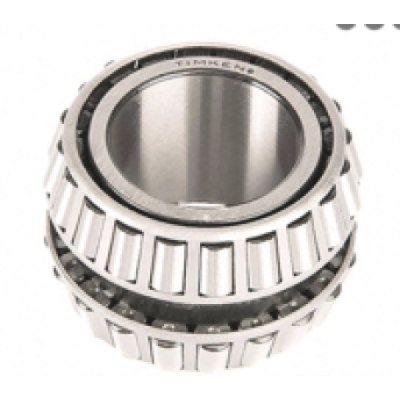

M667949D Double Cones (Imperial)
M667949D Double Cones (Imperial)
Price $ 0.00
Part Number M667949D
Type Cones
Bearing Part Number M667949D-M667910 , M667949D-M667911
System of Measurement Inch
Bearing Type Roller
Roller Bearing Type Tapered Roller
For Load Direction Combined Radial and Thrust
Construction Double Row
Seal Type Open
Series M667900
Bore Dia 16.125"
Bore Dia Tolerance +0.051" to 0
Double Cone Width 6.375"
Double Cone Width Tolerance +0.076" to -0.254"
Cone Backface ToClear Radius 0.06"
Cone Frontface Backing Diameter 16.87"
Cone Backface Backing Diameter 16.87"
Cage Cone Frontface Clearance 0.19"
Static Radial Load 886000 lbf
Roller Material 52100 Chrome Steel
Cage Material Pin-Type
Dynamic Radial Rating(90 Million Revolutions) 109000 lbf
Dynamic Radial Rating(Two Row 1 Million Revolutions) 731000 lbf
Dynamic Radial Rating(1 Million Revolutions) 420000 lbf
Dynamic Thrust Rating(90 Million Revolutions) 77800 lbf
Dynamic Radial Rating(Two Row 90 Million Revolutions) 190000 lbf
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
