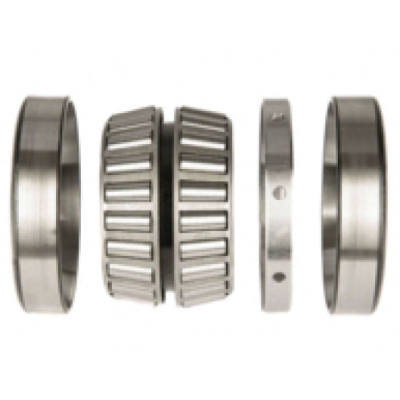

M667949D-M667910 TDI (Two-Row Double Inner Race) (Imperial)
M667949D-M667910 TDI (Two-Row Double Inner Race) (Imperial)
Price $ 0.00
Part Number M667949D-M667910
Type Bearing
Cone Part Number M667949D
Cup Part Number M667910
System of Measurement Inch
Bearing Type Roller
Roller Bearing Type Tapered Roller
For Load Direction Combined Radial and Thrust
Construction Double Row
Seal Type Open
Cups Type Standard
Series M667900
Bore Dia 16.125"
Bore Dia Tolerance +0.051" to 0
Outer Dia 21.5"
Outer Dia Tolerance +0.051" to 0
Double Cone Width 6.375"
Double Cone Width Tolerance +0.076" to -0.254"
Cup Width 2.625"
Cup Width Tolerance +0.051" to -0.254"
Bearing Width Across Cups 6.3749"
Bearing Width Across Cups Tolerance +0.381" to-0.381"
Cone Backface ToClear Radius 0.06"
Cup Backface ToClear Radius 0.25"
Cup Frontface Backing Diameter 16.87"
Cup Backface Backing Diameter 20.08"
Dynamic Radial Load 731000 lbf
Ring Material 52100 Chrome Steel
Roller Material 52100 Chrome Steel
Cage Material Pin-Type
Dynamic Radial Rating (One Row 90 million revolutions) 109000 lbf
Dynamic Thrust Rating (90 million revolutions) 77800 lbf
Dynamic Radial Rating (Two Row 90 million revolutions) 190000 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 232.20 lb
