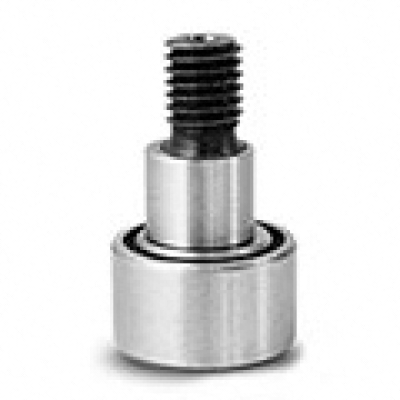

KRE80-PP
| Part Number | KRE80-PP |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Shaft Mount Type | Press Fit |
| Bearing Type | Needle Roller |
| Cross Reference | INA |
| C1 | 1 mm |
| For Load Direction | Radial |
| Roller Shape | Crowned |
| Internal Construction | Caged Needle Roller |
| Type | Eccentric Stud |
| Mounting Method | Hex Hole |
| Seal Type | Sealed |
| Roller Material | Bearing Steel |
| Roller Dia | 80 mm |
| Roller Width | 35 mm |
| Stud Dia | 30 mm |
| Stud Length | 63 mm |
| Threads | M30x1 |
| Minimum Thread Length | 32 mm |
| Shoulder Dia | 53 mm |
| Shoulder Length | 1 mm |
| Bushing Dia | 35 mm |
| Bushing Length | 29 mm |
| Eccentricity | 1.5 mm |
| Overall Length | 100 mm |
| rmin | 1.1 mm |
| Max Speed | 1300 1/min |
| Tightening Torque Nut | 450 Nm |
| Fatigue Load Limit Radial | 11200 N |
| Static Radial Load | 78000 N |
| Dynamic Radial Load | 38500 N |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight (g) | 1665 |
})
INTERCHANGE
The LILY bearing part series KRE80-PP is a potential replacement for these common bearing part numbers.
LILY
INA CROWNED OUTER RING KRV...PP
INA CYLINDRICAL OUTER RING KRV...PPX
IKO NUMBER CROWNED OUTER RING CFKR..VUUR
IKO NUMBER CYLINDRICAL OUTER RING CFKR..VUU
JNS / THK CROWNED OUTER RING CF...VUUR-AB
JNS / THK CYLINDRICAL OUTER RING CF...VUUAB
LKRE80-PP
KRV 80 PP
KRV 80 PPX
CFKR 80 VUUR
CFKR 80 VUU
CF 30 VUUR-AB
CF 30 VUU-AB
