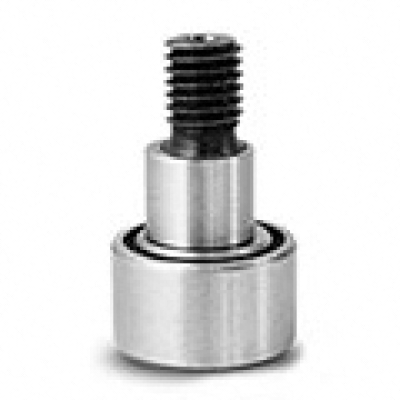

KRE62-PP
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | KRE62-PP |
Brand: LILY  |
Interchangeable With: Schaeffler (INA) |
| System of Measurement | Metric |
| Shaft Mount Type | Press Fit |
| Bearing Type | Needle Roller |
| Cross Reference | INA |
| For Load Direction | Radial |
| Roller Shape | Crowned |
| Internal Construction | Caged Needle Roller |
| Type | Eccentric Stud |
| Mounting Method | Hex Hole |
| Seal Type | Sealed |
| Roller Material | Bearing Steel |
| Roller Dia | 62 mm |
| Roller Width | 29 mm |
| Stud Dia | 24 mm |
| Stud Length | 49.5 mm |
| Threads | M24x1 |
| Minimum Thread Length | 25 mm |
| Shoulder Dia | 44 mm |
| Shoulder Length | 0.8 mm |
| Bushing Dia | 28 mm |
| Bushing Length | 22 mm |
| Eccentricity | 1 mm |
| Overall Length | 80 mm |
| rmin | 1 mm |
| Max Speed | 1900 rpm |
| Tightening Torque Nut | 220 Nm |
| Fatigue Load Limit Radial | 7000 N |
| Static Radial Load | 48500 N |
| Dynamic Radial Load | 26000 N |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight (g) | 789 |
