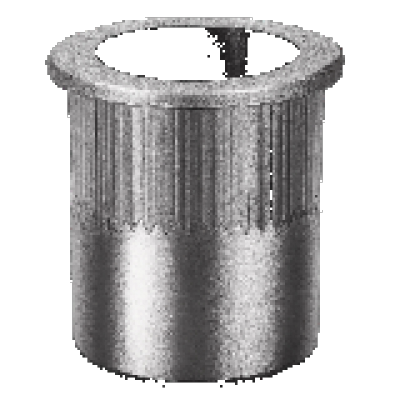

94020A391
Per Pack of 10
Bulk orders will be discounted, please contact our sales for a bulk quote.We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | JEACAADJB |
| System of Measurement | Metric |
| Material | Aluminum |
| Thread Size | M8 |
| Thread Pitch | 1.25 mm |
| Thread Type | Metric |
| Thread Spacing | Coarse |
| Thread Fit | Class 6H |
| Thread Direction | Right Hand |
| Drill Bit Size | 13.5 mm |
| Drill Bit Size Decimal Equivalent | 13.5 mm |
| For Material Thickness | 0.7 to 3.8 mm |
| Body Type | Ribbed |
| Body Diameter | 13.5 mm |
| Length | 17.5 mm |
| Installed Length | 11.9 mm |
| Flange Diameter | 17.4 mm |
| Flange Thickness | 0.9 mm |
| Nut Type | Rivet |
| End Type | Open |
| For Use In | Metal |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
| Country of Origin | China |
