JABJEABBA
90194A110
$2.56
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
| Part Number | JABJEABBA |
| System of Measurement | Inch |
| Material | 18-8 Stainless Steel |
| Thread Size | 8-32 |
| Thread Type | UNC |
| Thread Spacing | Coarse |
| Thread Fit | Class 3B |
| Thread Depth | 0.15625" |
| Thread Direction | Right Hand |
| Width | 0.3125" |
| Height | 0.3125" |
| Maximum Pressure | 1200 psi |
| Seal Material | Silicone Rubber |
| Seal Temperature Range | -80° to 400° F |
| Drive Style | External Hex |

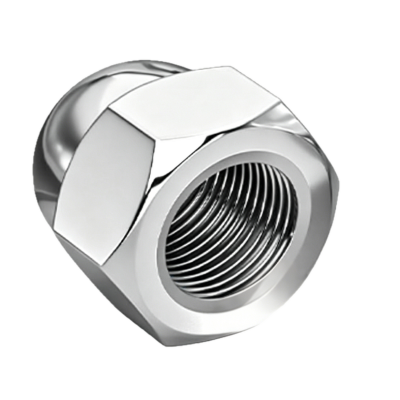

| Nut Type | Cap, Sealing, Hex |
| Cap Nut Profile | Standard |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
| Country of Origin | China |
INTERCHANGE
The LILY Bearing part series JABJEABBA is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
JABJEABBA
90194A110
