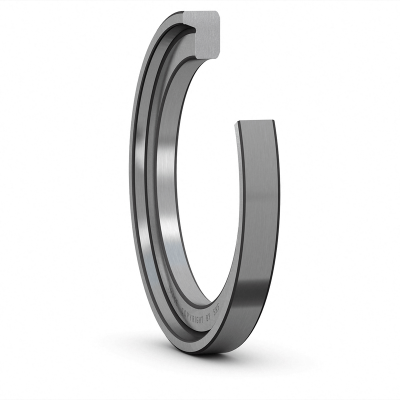

HJ 320 EC
| Part Number | HJ 320 EC |
Brand: LILY  | |
Equivalent: SKF |
| System of Measurement | Metric |
| Bore Dia | 100 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| Outer Dia | 139.5 mm |
| Outer Dia Tolerance | -0.018mm to 0 |
| Width Contacting Inner Ring Side Face | 13 mm |
| Width | 20.5 mm |
| Width Tolerance | -0.12mm to 0 |
| Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) | 3 mm |
| Temperature Range | -30° to 110 °C |
| Material | Chrome Steel |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.87 kg |
