HJ 309 EC
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | HJ 309 EC |
Brand: LILY  |
Interchangeable With: SKF |
Characteristics |
|
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
Dimensions |
|
| Bore Dia | 45 mm |
| Bore Dia Tolerance | -0.012mm to 0 |
| Outer Dia | 64.4 mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Width | 11.5 mm |
| Width Tolerance | -0.12mm to 0 |
| Width Contacting Inner Ring Side Face | 7 mm |
| Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) | 1.5 mm |
Material |
|
| Material | Chrome Steel |
Performance |
|
| Temperature Range | -30° to 110 °C |
Properties |
|
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.11 kg |

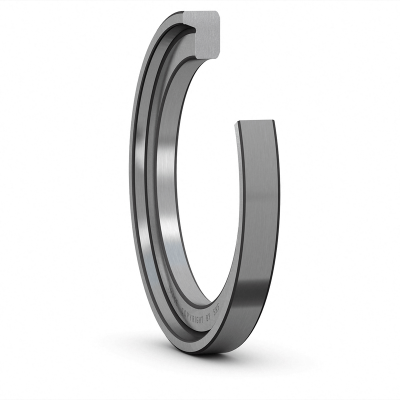

Design Features of HJ 309 EC Bearing
HJ 309 EC Bearing enhances axial load-carrying capacity by providing reliable support and precise alignment. HJ 309 EC outer dia is 64.4 mm. Its bore dia is 45 mm. The ring ensures accurate axial positioning, minimizing the risk of misalignment and improving the overall performance and durability of the bearing in demanding applications.
What Benefits Can HJ 309 EC Bearing Provide?
- Enhanced Axial Load Capacity: Provides additional support to handle axial loads effectively.
- Improved Alignment: Ensures precise axial positioning, reducing the risk of misalignment.
- Extended Bearing Life: Minimizes uneven wear and stress, enhancing durability.
- Increased Stability: Offers reliable support, ensuring smooth and stable operation under varying loads.
- Versatility: Suitable for applications requiring both radial and axial load handling.
- Improved Performance: Enhances the overall efficiency and reliability of the bearing.
- Ease of Integration: Can be easily incorporated into existing bearing setups for added functionality.
What Can HJ 309 EC Bearing Be Used for?
- Industrial Machinery: Enhances axial load support in gearboxes, compressors, and pumps.
- Automotive Industry: Provides stability in transmissions, axles, and differential systems.
- Construction Equipment: Ensures reliable performance in heavy-duty machinery like cranes and excavators.
- Electric Motors: Improves alignment and load distribution in motor assemblies.
- Agricultural Machinery: Supports axial loads in tractors, harvesters, and other equipment.
- Chrome Steel Handling Systems: Used in conveyors and hoists to manage combined loads.
- Wind Turbines: Provides axial stability in rotating shafts and gearboxes.
