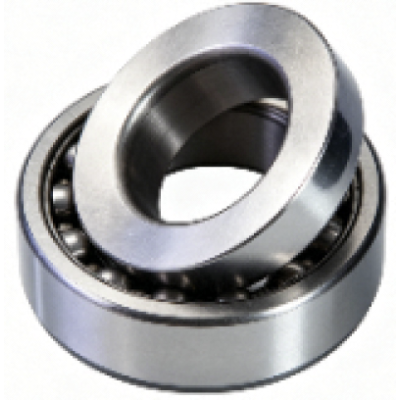

GX 70 F
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | GX 70 F |
Brand: LILY  |
Interchangeable With: SKF |
| System of Measurement | Metric |
| Bearing Type | Plain Bearing |
| Plain Bearing Type | Thrust |
| For Load Direction | Thrust |
| Seal Type | Open |
| Bore Dia | 70 mm |
| Bore Dia Tolerance | -0.015mm to 0 |
| Outer Dia | 160 mm |
| Outer Dia Tolerance | -0.025mm to 0 |
| Nominal Width | 50 mm |
| Nominal Width Tolerance | -0.5mm to +0.25mm |
| Angle Of Tilt | 3.5 ° |
| Raceway Diameter Inner Ring | 176 mm |
| Outside Diameter Inner Ring | 153 mm |
| Bore Diameter Outer Ring | 94.5 mm |
| Height Inner Ring | 42 mm |
| Height Inner Ring Tolerance | -0.3mm to 0 |
| Height Outer Ring | 36.5 mm |
| Height Outer Ring Tolerance | -0.5mm to 0 |
| Chamfer Dimension | min.1 mm |
| Distance Sphere Diameter Centre-Large Inner Ring Side Face | 35 mm |
| Dynamic Thrust Load | 106875 lbf |
| Static Thrust Load | 168750 lbf |
| Material | Steel/Ptfe Frp |
| Specific Dynamic Load Factor | 50 N/mm² |
| Specific Static Load Factor | 80 N/mm² |
| Lubrication | Required |
| Radial Clearance | Standard (Available in C2/C0/C3) |
| Temperature Range | -40° to 75° C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 5.4 kg |
Design Features of GX 70 F Bearing
GX 70 F Bearing is constructed with an inner ring and an outer ring, which has a spherical convex outside surface. It has flat support surfaces for handling axial loads and lubrication grooves or holes for easier maintenance. GX 70 F bore dia is 70 mm. Its out dia is 160 mm. GX 70 F nominal width is 50 mm. It provides a flexible and efficient solution for many mechanical applications.
What Benefits Can GX 70 F Bearing Provide?
- High Load Capacity: It is designed to handle significant axial loads.
- Self-Alignment: The spherical design allows for angular movement, accommodating misalignment.
- Low Friction: Features such as lubrication grooves or holes reduce friction and ease maintenance.
- Corrosion Resistance: It can resist corrosion in harsh environments
What Can GX 70 F Bearing Be Used for?
- Marine Equipment: In applications exposed to corrosive environments.
- Industrial Machinery: It is suitable for high load capacity and self-alignment.
- Construction Machinery: For joints and pivots in heavy equipment.
- Agricultural Equipment: It is the durable and self-aligning bearing.
