GEZ 500 TXA-2LS

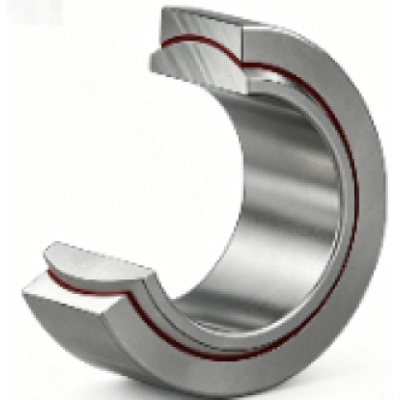

GEZ 500 TXA-2LS Radial Spherical Plain Bearings
Part Number GEZ 500 TXA-2LS
Brand: LILY
|
Equivalent: SKF
System of Measurement Inch
Bearing Type Plain Bearing
Plain Bearing Type Radial
For Load Direction Combined Radial and Thrust
Seal Type Triple-Lip Seals
Bore Dia 5"
Bore Dia Tolerance -0.001" to 0"
Outer Dia 7.75"
Outer Dia Tolerance -0.001" to 0"
Nominal Width 4.375"
Nominal Width Tolerance -0.005" to 0"
Width Outer Ring 3.75"
Width Outer Ring Tolerance -0.005" to 0"
Angle Of Tilt
Raceway Diameter Inner Ring 7.19"
Chamfer Dimension Bore 0.0394"
Chamfer Dimension Outer Ring 0.0433"
Dynamic Radial Load 468000 lbf
Static Radial Load 933750 lbf
Ring Material Steel
Ball Material Steel
Specific Dynamic Load Factor 21755.661 psi
Specific Static Load Factor 43511.321 psi
Lubrication Required
Radial Clearance Standard (Available in C2/C0/C3)
Temperature Range -20° to 80° C
RoHS Compliant
REACH Compliant
Weight 28.881 lb
