GEZ 106 ESX-2LS

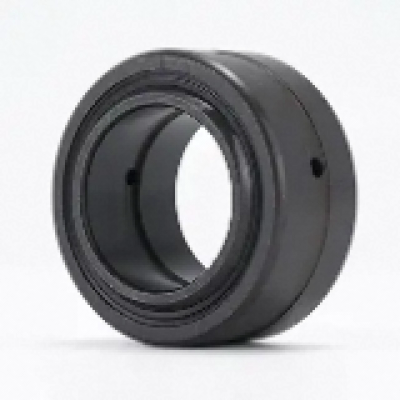

GEZ 106 ESX-2LS Radial Spherical Plain Bearings
Part Number GEZ 106 ESX-2LS
Brand: LILY
|
Equivalent: SKF
System of Measurement Inch
Bearing Type Plain Bearing
Plain Bearing Type Radial
For Load Direction Combined Radial and Thrust
Inner Ring Shape Groove
Outer Ring Shape Groove
Seal Type Triple-Lip Seals
Bore Dia 1.375"
Bore Dia Tolerance -0.001" to 0"
Outer Dia 2.1875"
Outer Dia Tolerance -0.001" to 0"
Nominal Width 1.187"
Nominal Width Tolerance -0.005" to 0"
Width Outer Ring 1.031"
Width Outer Ring Tolerance -0.005" to 0"
Angle Of Tilt
Raceway Diameter Inner Ring 1.937"
Width Annular Lubrication Groove At Outer Ring 0.1732"
Width Annular Lubrication Groove At Inner Ring 0.1969"
Diameter Lubrication Hole 0.1575"
Chamfer Dimension Bore 0.0236"
Chamfer Dimension Outer Ring 0.0394"
Dynamic Radial Load 35100 lbf
Static Radial Load 69750 lbf
Ring Material Steel
Ball Material Steel
Specific Dynamic Load Factor 21755.661 psi
Specific Static Load Factor 43511.321 psi
Lubrication No Required
Radial Clearance Standard (Available in C2/C0/C3)
Temperature Range -20° to 80° C
RoHS Compliant
REACH Compliant
Weight 0.7716 lb
