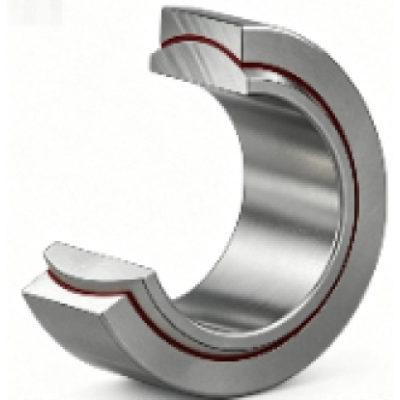

GEP 670 FS
| Part Number | GEP 670 FS |
Brand: LILY  | |
Equivalent: SKF |
| System of Measurement | Metric |
| Bearing Type | Plain Bearing |
| Plain Bearing Type | Radial |
| For Load Direction | Combined Radial and Thrust |
| Seal Type | Open |
| Bore Dia | 670 mm |
| Bore Dia Tolerance | -0.075mm to 0 |
| Outer Dia | 950 mm |
| Outer Dia Tolerance | -0.1mm to 0 |
| Nominal Width | 475 mm |
| Nominal Width Tolerance | -0.45mm to 0 |
| Width Outer Ring | 450 mm |
| Width Outer Ring Tolerance | -0.9mm to 0 |
| Angle Of Tilt | 2° |
| Raceway Diameter Inner Ring | 862 mm |
| Width Annular Lubrication Groove At Outer Ring | 35 mm |
| Width Annular Lubrication Groove At Inner Ring | 35 mm |
| Diameter Lubrication Hole | 13 mm |
| Chamfer Dimension Bore | min.3 mm |
| Chamfer Dimension Outer Ring | min.6 mm |
| Dynamic Radial Load | 6187500 lbf |
| Static Radial Load | 9337500 lbf |
| Ring Material | Steel |
| Ball Material | Steel |
| Specific Dynamic Load Factor | 80 N/mm² |
| Specific Static Load Factor | 120 N/mm² |
| Lubrication | Required |
| Radial Clearance | Standard (Available in C2/C0/C3) |
| Temperature Range | -50° to 150° C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 1153 kg |
})
