GEP 220 FS
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | GEP 220 FS |
Brand: LILY  |
Interchangeable With: SKF |
| System of Measurement | Metric |
| Bearing Type | Plain Bearing |
| Plain Bearing Type | Radial |
| For Load Direction | Combined Radial and Thrust |
| Seal Type | Open |
| Bore Dia | 220 mm |
| Bore Dia Tolerance | -0.03mm to 0 |
| Outer Dia | 320 mm |
| Outer Dia Tolerance | -0.04mm to 0 |
| Nominal Width | 155 mm |
| Nominal Width Tolerance | -0.25mm to 0 |
| Width Outer Ring | 148 mm |
| Width Outer Ring Tolerance | -0.5mm to 0 |
| Angle Of Tilt | 2 ° |
| Raceway Diameter Inner Ring | 290 mm |
| Width Annular Lubrication Groove At Outer Ring | 13.5 mm |
| Width Annular Lubrication Groove At Inner Ring | 13.5 mm |
| Diameter Lubrication Hole | 6 mm |
| Chamfer Dimension Bore | min.1.1 mm |
| Chamfer Dimension Outer Ring | min.1.1 mm |
| Dynamic Radial Load | 686250 lbf |
| Static Radial Load | 1023750 lbf |
| Ring Material | Steel |
| Ball Material | Steel |
| Specific Dynamic Load Factor | 80 N/mm² |
| Specific Static Load Factor | 120 N/mm² |
| Lubrication | Required |
| Radial Clearance | Standard (Available in C2/C0/C3) |
| Temperature Range | -50° to 150° C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 45.8 kg |

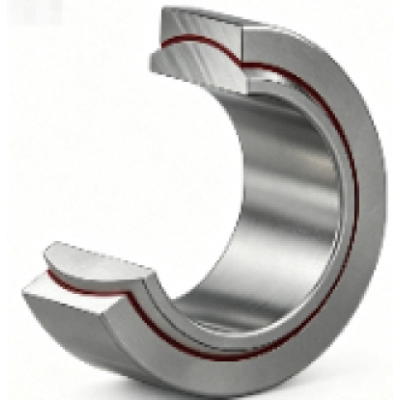

Design Features of GEP 220 FS Bearing
GEP 220 FS Bearing consists of three main components: an inner ring, an outer ring, and a sliding surface, which is the interface between the inner and outer rings. GEP 220 FS bore dia is 220 mm. Its out dia is 320 mm. GEP 220 FS nominal width is 155 mm.The spherical plain bearing is designed to handle misalignment and heavy loads in various mechanical applications.
What Benefits Can GEP 220 FS Bearing Provide?
- Self-Aligning Capability: The design allows to adjust to angle changes between the shaft and housing, making it easy to handle shaft deflections.
- High Load Capacity: It supports heavy radial loads and moderate axial loads in both directions.
- Durability: It is made from high-quality materials, offering better wear resistance.
- Versatility: Suitable for a wide range of applications requiring oscillatory motion.
What Can GEP 220 FS Bearing Be Used for?
- Heavy Machinery: Ideal for construction equipment, and mining equipment.
- Hydraulic Cylinders: It is used to handle misalignment and back-and-forth movements.
- Automotive: Common found in suspension systems and steering mechanisms.
- Industrial Equipment: It can be used in various industrial machinery for its self-aligning and high-load capacity features.
