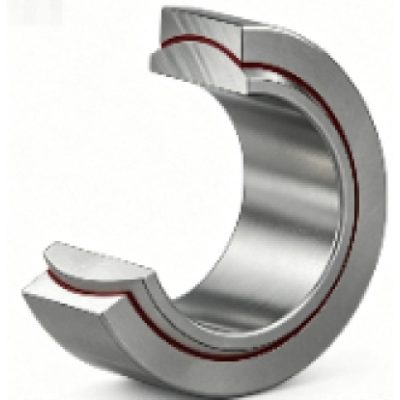

GEH 90 ES-2RS
| Part Number | GEH 90 ES-2RS |
| System of Measurement | Metric |
| Bearing Type | Plain Bearing |
| Plain Bearing Type | Radial |
| For Load Direction | Combined Radial and Thrust |
| Inner Ring Shape | Groove |
| Outer Ring Shape | Groove |
| Seal Type | Double-Lip Seals |
| Bore Dia | 90 mm |
| Bore Dia Tolerance | -20mm to 0 |
| Outer Dia | 150 mm |
| Outer Dia Tolerance | -18mm to 0 |
| Nominal Width | 85 mm |
| Nominal Width Tolerance | -200mm to 0 |
| Width Outer Ring | 55 mm |
| Width Outer Ring Tolerance | -500mm to 0 |
| Angle Of Tilt | 15° |
| Raceway Diameter Inner Ring | 130 mm |
| Width Annular Lubrication Groove At Outer Ring | 11.5 mm |
| Width Annular Lubrication Groove At Inner Ring | 11.5 mm |
| Diameter Lubrication Hole | 5 mm |
| Chamfer Dimension Bore | min.1 mm |
| Chamfer Dimension Outer Ring | min.1 mm |
| Dynamic Radial Load | 137250 lbf |
| Static Radial Load | 686250 lbf |
| Ring Material | Steel |
| Ball Material | Steel |
| Specific Dynamic Load Factor | 100 N/mm² |
| Specific Static Load Factor | 500 N/mm² |
| Lubrication | Required |
| Radial Clearance | Standard (Available in C2/C0/C3) |
| Temperature Range | -50° to 120° C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 5.3 kg |
})
