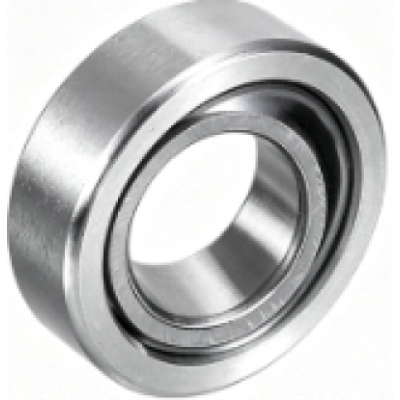

GEH 280 ES-2RS
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | GEH 280 ES-2RS |
Brand: LILY  |
Interchangeable With: SKF |
| System of Measurement | Metric |
| Bearing Type | Plain Bearing |
| Plain Bearing Type | Radial |
| For Load Direction | Combined Radial and Thrust |
| Inner Ring Shape | Groove |
| Outer Ring Shape | Groove |
| Seal Type | Double-Lip Seals |
| Bore Dia | 280 mm |
| Bore Dia Tolerance | -0.035mm to 0 |
| Outer Dia | 430 mm |
| Outer Dia Tolerance | -0.045mm to 0 |
| Nominal Width | 210 mm |
| Nominal Width Tolerance | -0.3mm to 0 |
| Width Outer Ring | 120 mm |
| Width Outer Ring Tolerance | -0.4mm to 0 |
| Angle Of Tilt | 15 ° |
| Raceway Diameter Inner Ring | 375 mm |
| Width Annular Lubrication Groove At Outer Ring | 16 mm |
| Width Annular Lubrication Groove At Inner Ring | 16 mm |
| Diameter Lubrication Hole | 7 mm |
| Chamfer Dimension Bore | min.1.1 mm |
| Chamfer Dimension Outer Ring | min.1.1 mm |
| Dynamic Radial Load | 855000 lbf |
| Static Radial Load | 4275000 lbf |
| Ring Material | Steel |
| Ball Material | Steel |
| Specific Dynamic Load Factor | 100 N/mm² |
| Specific Static Load Factor | 500 N/mm² |
| Lubrication | Required |
| Radial Clearance | Standard (Available in C2/C0/C3) |
| Temperature Range | -50° to 120° C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 96 kg |
Design Features of GEH 280 ES-2RS Bearing
GEH 280 ES-2RS Bearing consists of three main components: an inner ring, an outer ring, and a sliding surface, which is the interface between the inner and outer rings. GEH 280 ES-2RS bore dia is 280 mm. Its out dia is 430 mm. GEH 280 ES-2RS nominal width is 210 mm.The spherical plain bearing is designed to handle misalignment and heavy loads in various mechanical applications.
What Benefits Can GEH 280 ES-2RS Bearing Provide?
- Self-Aligning Capability: The design allows to adjust to angle changes between the shaft and housing, making it easy to handle shaft deflections.
- High Load Capacity: It supports heavy radial loads and moderate axial loads in both directions.
- Durability: It is made from high-quality materials, offering better wear resistance.
- Versatility: Suitable for a wide range of applications requiring oscillatory motion.
What Can GEH 280 ES-2RS Bearing Be Used for?
- Heavy Machinery: Ideal for construction equipment, and mining equipment.
- Hydraulic Cylinders: It is used to handle misalignment and back-and-forth movements.
- Automotive: Common found in suspension systems and steering mechanisms.
- Industrial Equipment: It can be used in various industrial machinery for its self-aligning and high-load capacity features.
