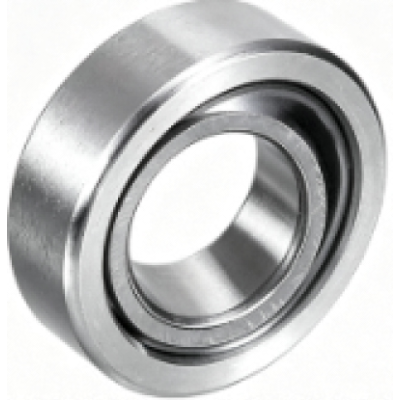

GEH 12 C
| Part Number | GEH 12 C |
Brand: LILY  | |
Equivalent: SKF |
| System of Measurement | Metric |
| Bearing Type | Plain Bearing |
| Plain Bearing Type | Radial |
| For Load Direction | Combined Radial and Thrust |
| Seal Type | Open |
| Bore Dia | 12 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 26 mm |
| Outer Dia Tolerance | -0.009mm to 0 |
| Nominal Width | 15 mm |
| Nominal Width Tolerance | -0.12mm to 0 |
| Width Outer Ring | 9 mm |
| Width Outer Ring Tolerance | -0.24mm to 0 |
| Angle Of Tilt | 18° |
| Raceway Diameter Inner Ring | 22 mm |
| Chamfer Dimension Bore | min.0.3 mm |
| Chamfer Dimension Outer Ring | min.0.3 mm |
| Dynamic Radial Load | 4050 lbf |
| Static Radial Load | 10125 lbf |
| Ring Material | Steel |
| Ball Material | Steel |
| Specific Dynamic Load Factor | 100 N/mm² |
| Specific Static Load Factor | 250 N/mm² |
| Lubrication | Required |
| Radial Clearance | Standard (Available in C2/C0/C3) |
| Temperature Range | -50° to 120° C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.03 kg |
})
