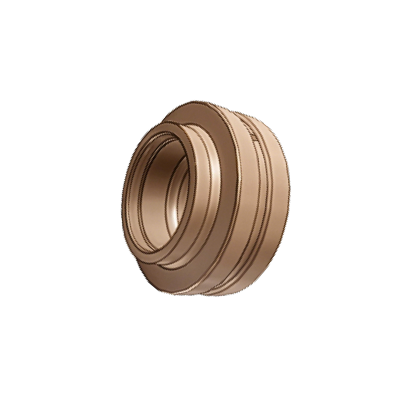

GEG 50 ES
| Part Number | GEG 50 ES |
Brand: LILY  | |
Equivalent: SKF |
| System of Measurement | Metric |
| Bearing Type | Plain Bearing |
| Plain Bearing Type | Radial |
| For Load Direction | Combined Radial and Thrust |
| Inner Ring Shape | Groove |
| Outer Ring Shape | Groove |
| Seal Type | Open |
| Bore Dia | 50 mm |
| Bore Dia Tolerance | +0.025mm to 0 |
| Outer Dia | 75 mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Nominal Width | 50 mm |
| Nominal Width Tolerance | -0.25mm to 0 |
| Width Outer Ring | 28 mm |
| Width Outer Ring Tolerance | -0.3mm to 0 |
| Angle Of Tilt | 4° |
| Raceway Diameter Inner Ring | 66 mm |
| Shoulder Diameter Cylindrical Extension Inner Ring | 57 mm |
| Width Annular Lubrication Groove At Outer Ring | 4.6 mm |
| Width Annular Lubrication Groove At Inner Ring | 4.8 mm |
| Diameter Lubrication Hole | 3 mm |
| Chamfer Dimension Bore | min.0.6 mm |
| Chamfer Dimension Outer Ring | min.1 mm |
| Dynamic Radial Load | 35100 lbf |
| Static Radial Load | 175500 lbf |
| Ring Material | Steel |
| Ball Material | Steel |
| Specific Dynamic Load Factor | 100 N/mm² |
| Specific Static Load Factor | 500 N/mm² |
| Lubrication | Required |
| Radial Clearance | Standard (Available in C2/C0/C3) |
| Temperature Range | -45° to 110° C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.56 kg |
})
