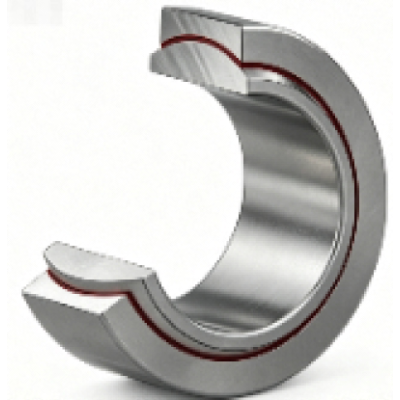

GEG 110 ES-2RS
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | GEG 110 ES-2RS |
Brand: LILY  |
Interchangeable With: SKF |
| System of Measurement | Metric |
| Bearing Type | Plain Bearing |
| Plain Bearing Type | Radial |
| For Load Direction | Combined Radial and Thrust |
| Inner Ring Shape | Groove |
| Outer Ring Shape | Groove |
| Seal Type | Double-Lip Seals |
| Bore Dia | 110 mm |
| Bore Dia Tolerance | +0.035mm to 0 |
| Outer Dia | 160 mm |
| Outer Dia Tolerance | -0.025mm to 0 |
| Nominal Width | 110 mm |
| Nominal Width Tolerance | -0.35mm to 0 |
| Width Outer Ring | 55 mm |
| Width Outer Ring Tolerance | -0.5mm to 0 |
| Angle Of Tilt | 4 ° |
| Raceway Diameter Inner Ring | 140 mm |
| Shoulder Diameter Cylindrical Extension Inner Ring | 123 mm |
| Width Annular Lubrication Groove At Outer Ring | 11.5 mm |
| Width Annular Lubrication Groove At Inner Ring | 11.5 mm |
| Diameter Lubrication Hole | 5 mm |
| Chamfer Dimension Bore | min.1 mm |
| Chamfer Dimension Outer Ring | min.1 mm |
| Dynamic Radial Load | 147375 lbf |
| Static Radial Load | 731250 lbf |
| Ring Material | Steel |
| Ball Material | Steel |
| Specific Dynamic Load Factor | 100 N/mm² |
| Specific Static Load Factor | 500 N/mm² |
| Lubrication | Required |
| Radial Clearance | Standard (Available in C2/C0/C3) |
| Temperature Range | -45° to 110° C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 5.2 kg |
Design Features of GEG 110 ES-2RS Bearing
GEG 110 ES-2RS Bearing consists of three main components: an inner ring, an outer ring, and a sliding surface, which is the interface between the inner and outer rings. GEG 110 ES-2RS bore dia is 110 mm. Its out dia is 160 mm. GEG 110 ES-2RS nominal width is 110 mm.The spherical plain bearing is designed to handle misalignment and heavy loads in various mechanical applications.
What Benefits Can GEG 110 ES-2RS Bearing Provide?
- Self-Aligning Capability: The design allows to adjust to angle changes between the shaft and housing, making it easy to handle shaft deflections.
- High Load Capacity: It supports heavy radial loads and moderate axial loads in both directions.
- Durability: It is made from high-quality materials, offering better wear resistance.
- Versatility: Suitable for a wide range of applications requiring oscillatory motion.
What Can GEG 110 ES-2RS Bearing Be Used for?
- Heavy Machinery: Ideal for construction equipment, and mining equipment.
- Hydraulic Cylinders: It is used to handle misalignment and back-and-forth movements.
- Automotive: Common found in suspension systems and steering mechanisms.
- Industrial Equipment: It can be used in various industrial machinery for its self-aligning and high-load capacity features.
