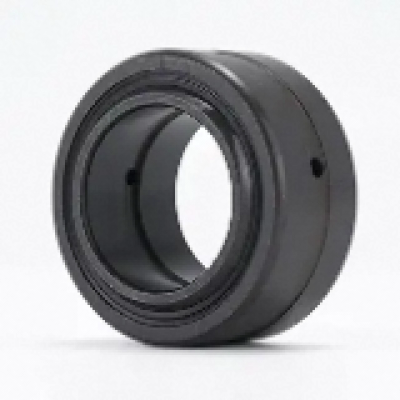

GEC 600 TXA-2RS
| Part Number | GEC 600 TXA-2RS |
Brand: LILY  | |
Equivalent: SKF |
| System of Measurement | Metric |
| Bearing Type | Plain Bearing |
| Plain Bearing Type | Radial |
| For Load Direction | Combined Radial and Thrust |
| Seal Type | Double-Lip Seals |
| Bore Dia | 600 mm |
| Bore Dia Tolerance | -0.05mm to 0 |
| Outer Dia | 800 mm |
| Outer Dia Tolerance | -0.075mm to 0 |
| Nominal Width | 272 mm |
| Nominal Width Tolerance | -0.35mm to 0 |
| Width Outer Ring | 230 mm |
| Width Outer Ring Tolerance | -0.6mm to 0 |
| Angle Of Tilt | 3° |
| Raceway Diameter Inner Ring | 700 mm |
| Chamfer Dimension Bore | min.2 mm |
| Chamfer Dimension Outer Ring | min.5 mm |
| Dynamic Radial Load | 9675000 lbf |
| Static Radial Load | 16200000 lbf |
| Ring Material | Steel |
| Ball Material | Steel |
| Specific Dynamic Load Factor | 300 N/mm² |
| Specific Static Load Factor | 500 N/mm² |
| Lubrication | Required |
| Radial Clearance | Standard (Available in C2/C0/C3) |
| Temperature Range | -45° to 110° C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 405 kg |
})
