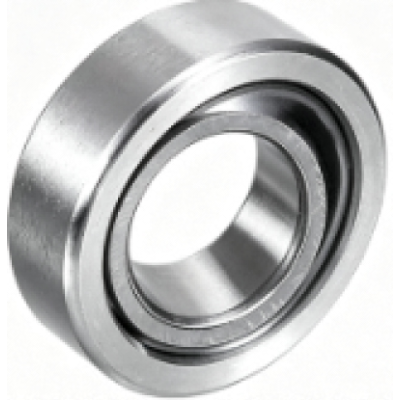

GEC 460 FBAS
| Part Number | GEC 460 FBAS |
Brand: LILY  | |
Equivalent: SKF |
| System of Measurement | Metric |
| Bearing Type | Plain Bearing |
| Plain Bearing Type | Radial |
| For Load Direction | Combined Radial and Thrust |
| Seal Type | Open |
| Bore Dia | 460 mm |
| Bore Dia Tolerance | -0.045mm to 0 |
| Outer Dia | 620 mm |
| Outer Dia Tolerance | -0.05mm to 0 |
| Nominal Width | 218 mm |
| Nominal Width Tolerance | -0.3mm to 0 |
| Width Outer Ring | 185 mm |
| Width Outer Ring Tolerance | -0.6mm to 0 |
| Angle Of Tilt | 3° |
| Raceway Diameter Inner Ring | 540 mm |
| Width Annular Lubrication Groove At Outer Ring | 27 mm |
| Width Annular Lubrication Groove At Inner Ring | 27 mm |
| Diameter Lubrication Hole | 10 mm |
| Chamfer Dimension Bore | min.1.5 mm |
| Chamfer Dimension Outer Ring | min.4 mm |
| Dynamic Radial Load | 1350000 lbf |
| Static Radial Load | 2025000 lbf |
| Ring Material | Steel |
| Ball Material | Steel |
| Specific Dynamic Load Factor | 80 N/mm² |
| Specific Static Load Factor | 120 N/mm² |
| Lubrication | Required |
| Radial Clearance | Standard (Available in C2/C0/C3) |
| Temperature Range | -45° to 110° C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 182 kg |
})
