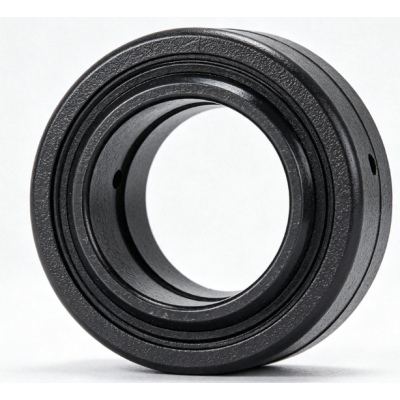

GE 80 ESL-2LS
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | GE 80 ESL-2LS |
Brand: LILY  |
Interchangeable With: SKF |
| System of Measurement | Metric |
| Bearing Type | Plain Bearing |
| Plain Bearing Type | Radial |
| For Load Direction | Combined Radial and Thrust |
| Inner Ring Shape | Groove |
| Outer Ring Shape | Groove |
| Seal Type | Triple-Lip Seals |
| Bore Dia | 80 mm |
| Bore Dia Tolerance | -0.015mm to 0 |
| Outer Dia | 120 mm |
| Outer Dia Tolerance | -0.015mm to 0 |
| Nominal Width | 55 mm |
| Nominal Width Tolerance | -0.15mm to 0 |
| Width Outer Ring | 45 mm |
| Width Outer Ring Tolerance | -0.4mm to 0 |
| Angle Of Tilt | 5 ° |
| Raceway Diameter Inner Ring | 105 mm |
| Width Annular Lubrication Groove At Outer Ring | 7.6 mm |
| Width Annular Lubrication Groove At Inner Ring | 7.6 mm |
| Diameter Lubrication Hole | 4 mm |
| Chamfer Dimension Bore | min.1 mm |
| Chamfer Dimension Outer Ring | min.1 mm |
| Dynamic Radial Load | 90000 lbf |
| Static Radial Load | 450000 lbf |
| Ring Material | Steel |
| Ball Material | Ptfe Sintered Bronze |
| Specific Dynamic Load Factor | 100 N/mm² |
| Specific Static Load Factor | 500 N/mm² |
| Lubrication | Required |
| Radial Clearance | Standard (Available in C2/C0/C3) |
| Temperature Range | -50° to 120° C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 2.3 kg |
Design Features of GE 80 ESL-2LS Bearing
GE 80 ESL-2LS Bearing consists of three main components: an inner ring, an outer ring, and a sliding surface, which is the interface between the inner and outer rings. GE 80 ESL-2LS bore dia is 80 mm. Its out dia is 120 mm. GE 80 ESL-2LS nominal width is 55 mm.The spherical plain bearing is designed to handle misalignment and heavy loads in various mechanical applications.
What Benefits Can GE 80 ESL-2LS Bearing Provide?
- Self-Aligning Capability: The design allows to adjust to angle changes between the shaft and housing, making it easy to handle shaft deflections.
- High Load Capacity: It supports heavy radial loads and moderate axial loads in both directions.
- Durability: It is made from high-quality materials, offering better wear resistance.
- Versatility: Suitable for a wide range of applications requiring oscillatory motion.
What Can GE 80 ESL-2LS Bearing Be Used for?
- Heavy Machinery: Ideal for construction equipment, and mining equipment.
- Hydraulic Cylinders: It is used to handle misalignment and back-and-forth movements.
- Automotive: Common found in suspension systems and steering mechanisms.
- Industrial Equipment: It can be used in various industrial machinery for its self-aligning and high-load capacity features.
