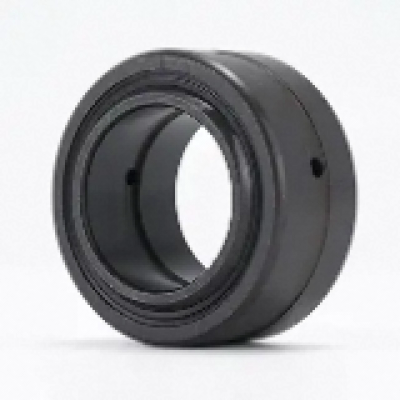

GE 140 TXG3A-2RS
| Part Number | GE 140 TXG3A-2RS |
Brand: LILY  | |
Equivalent: SKF |
| System of Measurement | Metric |
| Bearing Type | Plain Bearing |
| Plain Bearing Type | Radial |
| For Load Direction | Combined Radial and Thrust |
| Seal Type | Double-Lip Seals |
| Bore Dia | 140 mm |
| Bore Dia Tolerance | -0.025mm to 0 |
| Outer Dia | 210 mm |
| Outer Dia Tolerance | -0.030mm to 0 |
| Nominal Width | 90 mm |
| Nominal Width Tolerance | -0.25mm to 0 |
| Width Outer Ring | 70 mm |
| Width Outer Ring Tolerance | -0.6mm to 0 |
| Angle Of Tilt | 7° |
| Raceway Diameter Inner Ring | 180 mm |
| Chamfer Dimension Bore | min.1 mm |
| Chamfer Dimension Outer Ring | min.1 mm |
| Dynamic Radial Load | 674 427 lbf |
| Static Radial Load | 1124045 lbf |
| Ring Material | Stainless steel |
| Ball Material | Steel/PTFE fabric |
| Specific Dynamic Load Factor | 300 N/mm² |
| Specific Static Load Factor | 500 N/mm² |
| Lubrication | Required |
| Radial Clearance | Standard (Available in C2/C0/C3) |
| Temperature Range | -50° to 120° C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 11 kg |
})
