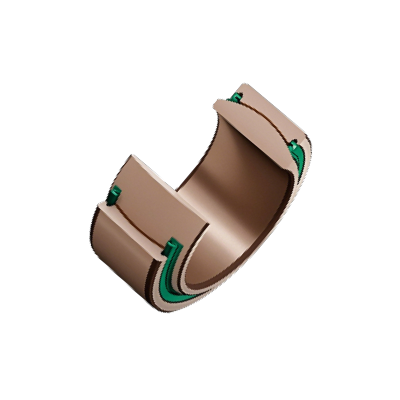

GE 100 TXG3A-2LS
| Part Number | GE 100 TXG3A-2LS |
| System of Measurement | Metric |
| Bearing Type | Plain Bearing |
| Plain Bearing Type | Radial |
| For Load Direction | Combined Radial and Thrust |
| Seal Type | Triple-lip Seals |
| Bore Dia | 100 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| Outer Dia | 150 mm |
| Outer Dia Tolerance | -0.018mm to 0 |
| Nominal Width | 70 mm |
| Nominal Width Tolerance | -0.20mm to 0 |
| Width Outer Ring | 55 mm |
| Width Outer Ring Tolerance | -0.5mm to 0 |
| Angle Of Tilt | 6° |
| Raceway Diameter Inner Ring | 130 mm |
| Chamfer Dimension Bore | min.1 mm |
| Chamfer Dimension Outer Ring | min.1 mm |
| Dynamic Radial Load | 389250 lbf |
| Static Radial Load | 641250 lbf |
| Ring Material | Steel |
| Ball Material | Ptfe Sintered Bronze |
| Specific Dynamic Load Factor | 300 N/mm² |
| Specific Static Load Factor | 500 N/mm² |
| Lubrication | Required |
| Radial Clearance | Standard (Available in C2/C0/C3) |
| Temperature Range | -50° to 120° C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 4.3 kg |
})
