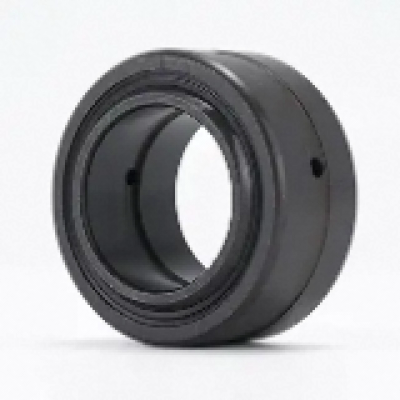

GE 10 C
| Part Number | GE 10 C |
Brand: LILY  | |
Equivalent: SKF |
| System of Measurement | Metric |
| Bearing Type | Plain Bearing |
| Plain Bearing Type | Radial |
| For Load Direction | Combined Radial and Thrust |
| Seal Type | Open |
| Bore Dia | 10 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 19 mm |
| Outer Dia Tolerance | -0.009mm to 0 |
| Nominal Width | 9 mm |
| Nominal Width Tolerance | -0.12mm to 0 |
| Width Outer Ring | 6 mm |
| Width Outer Ring Tolerance | -0.24mm to 0 |
| Angle Of Tilt | 12° |
| Raceway Diameter Inner Ring | 16 mm |
| Chamfer Dimension Bore | min.0.3 mm |
| Chamfer Dimension Outer Ring | min.0.3 mm |
| Dynamic Radial Load | 1946 lbf |
| Static Radial Load | 4860 lbf |
| Ring Material | Steel |
| Ball Material | Ptfe Sintered Bronze |
| Specific Dynamic Load Factor | 100 N/mm² |
| Specific Static Load Factor | 250 N/mm² |
| Lubrication | Required |
| Radial Clearance | Standard (Available in C2/C0/C3) |
| Temperature Range | -50° to 120° C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.012 kg |
})
