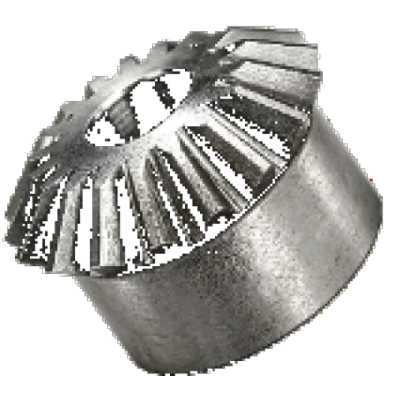

6010N15
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | GABANBF |
| System of Measurement | Metric |
| Gear Type | Spiral Bevel |
| Component | Gear |
| Bore Type | Machinable/Round |
| Face Width | 6 mm |
| Pressure Angle | 20 ° |
| Speed Ratio | 2:1 |
| Module | 1 |
| Number Of Teeth | 20 |
| Pitch Diameter | 20 mm |
| OD | 22.08 mm |
| Overall Width | 13.7 mm |
| For Shaft Diameter | 6-9 mm |
| Mounting Distance (B) | 28 mm |
| Material | Black-Oxide 1045 Carbon Steel |
| Teeth Heat Treatment | Hardened |
| Teeth Fabrication | Not Ground |
| Hub Diameter | 16 mm |
| Hub Width | 7 mm |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (07/08/2021, 219 SVHC) Compliant |
NOTE：All other trademarks are the property of their respective owners.
All other trademarks mentioned herein are used for the purpose of compatibility description and product identification only. Lily Bearing is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.
Design Features of GABANBF
GABANBF are engineered to transmit torque at right angles in heavy-duty mechanical systems. These pinions are made from high-strength alloy or hardened steel to ensure durability under high loads and extended use. They feature precisely machined bevel teeth—either straight or spiral—that provide smooth engagement with mating bevel gears, reduce backlash, and maintain high transmission efficiency. Metric sizing ensures compatibility with standardized components, while surface treatments such as carburizing or nitriding enhance wear resistance and extend service life. GABANBF hub diameter is 16 mm. Its face width is 6 mm. Its overall width is 13.7 mm. Their compact design and accurate geometry make them ideal for demanding industrial applications requiring reliable and efficient angular motion.
What Benefits Can GABANBF Provide?
- Reliable Angular Power Transmission: Designed to transmit torque between intersecting shafts with consistent efficiency, typically at a 90°angle.
- High Strength and Wear Resistance: Made from hardened or alloy steel and often treated to withstand heavy loads, shock, and long-term operation.
- Smooth, Precise Operation: Precision-machined teeth—especially in spiral designs—ensure minimal backlash, quiet performance, and smooth meshing.
- Metric Standardization: Metric sizing simplifies integration with global machinery, making replacement and design more efficient and cost-effective.
What Can GABANBF Be Used for?
- Heavy-duty gearboxes in mining, construction, and agricultural equipment
- Industrial machinery, such as conveyors, mixers, and material handling systems
- Automation systems and robotics that demand precise angular motion control
- Power transmission assemblies in marine, automotive, and aerospace applications
- Machining equipment like lathes, mills, and drilling machines requiring reliable torque transfer
