5924K56
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | FJCEKFG |
| System of Measurement | Inch |
| Bearing Type | Plain |
| Alignment Style | Self Aligning |
| Housing Type | Base Mount |
| With End Seals | No |
| Bore Dia | 1.500800" |
| Bore Dia Tolerance | 0" to 0.0002" |
| Overall Length | 3.031250" |
| Overall Height | 3.25" |
| Overall Width | 0.187500" |
| Center Height | 1.5" |
| Center Height Tolerance | -0.001" to 0.001" |
| Width | 0.187500" |
| Static Radial Load | 145 lbf |
| Bearing Material | Anodized 6061 Aluminum |
| Liner Material | Carbon |
| Housing Material | Anodized 6061 Aluminum |
| Temperature Range | 15° to 140° F |
| Lubrication | Not Required |
| RoHS | Compliant |
| REACH | Compliant |
| Diameter | 8 mm |
| Length | 3.031250" |
| Number of | 4 |
| Replaceable Insert Bearing | Yes |
| Height | 3.25" |
| Center -to-Center, Length | 2.5" |
| Mounting Holes Thread Size | M8 × 1.25 mm |
| Material | Aluminum, Stainless Steel, Steel |
| Center-to-Center, Width | 0.031250" |
| Dynamic Load Capacity @ Pressure | 145 lbs. |
| Smoothness | 8 microns RMS |
| Air Inlet Thread Size | M5 × 0.8 mm |
NOTE：All other trademarks are the property of their respective owners.
All other trademarks mentioned herein are used for the purpose of compatibility description and product identification only. Lily Bearing is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

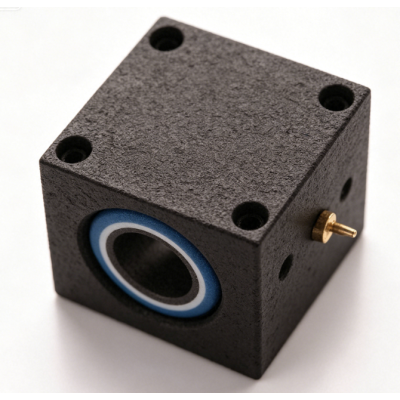

Design Features of FJCEKFG Bearing
FJCEKFG Bearing uses a thin layer of compressed air to levitate the moving part, eliminating physical contact and reducing wear. FJCEKFG overall length is 3.031250". Its bore dia is 1.500800". Its design ensures smooth, precise linear motion with minimal energy loss, making it ideal for high-precision and high-speed applications.
What Benefits Can FJCEKFG Bearing Provide?
- Zero Friction: By utilizing a layer of compressed air, it eliminates friction, resulting in minimal wear and energy loss, leading to longer operational life.
- High Precision: The lack of contact allows for ultra-precise linear motion, ideal for applications requiring extreme accuracy.
- Reduced Heat Generation: With no friction, there is minimal heat buildup, contributing to more consistent performance in sensitive environments.
- Low Maintenance: Its non-contact design reduces the need for frequent maintenance, saving on both time and costs.
- Enhanced Speed: The frictionless nature allows for high-speed motion without the risk of performance degradation.
What Can FJCEKFG Bearing Be Used for?
- Semiconductor Manufacturing: Used in wafer handling and precision alignment systems where even the smallest friction can affect performance.
- Optical and Laser Systems: Ensures smooth, vibration-free motion in optical alignment and laser scanning systems that demand high accuracy.
- Metrology and Inspection Equipment: Ideal for precision measurement tools where frictionless motion is critical for accurate readings.
- High-Speed Automation: Used in high-speed robotic arms and automated assembly lines where both speed and precision are essential.
- Aerospace Testing Equipment: In systems requiring highly accurate linear motion under minimal mechanical interference.
