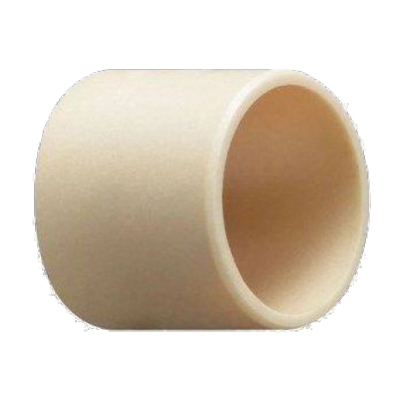

FEEFKH
Part Number | FEEFKH |
System of Measurement | Inch |
Bearing Type | Plain |
Plain Bearing Type | Sleeve |
For Load Direction | Radial |
For Shaft Diameter | 1/2" |
Bore Dia | 0.5005" |
Bore Dia Tolerance | 0" to 0.001" |
For Housing ID | 5/8" |
Outer Dia | 0.626" |
Outer Dia Tolerance | 0" to 0.0005" |
Length | 3/8" |
Length Tolerance | 0" to 0.01" |
Dynamic Radial Load | 2850 lbf |
Static Radial Load | 2850 lbf |
Max Speed (X1000 rpm) | 0.04 |
Material | PTFE Plastic |
Casing Material | 17-4 PH Stainless Steel |
Lubrication | Not Required |
For Shaft Type | Round |
Shaft Mount Type | Slip Fit |
Temperature Range | -60° to 320° F |
RoHS | Compliant |
REACH | Compliant |
INTERCHANGE
The LILY bearing part series FEEFKH is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
FEEFKH
