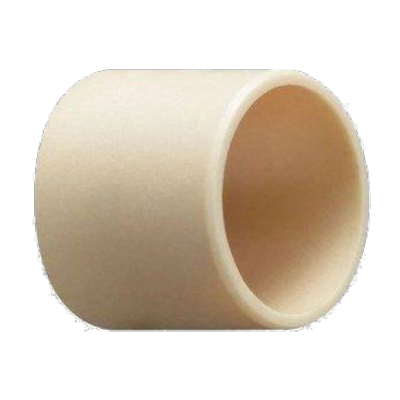

FEEFKF
| Part Number | FEEFKF |
| System of Measurement | Inch |
| Bearing Type | Plain |
| Plain Bearing Type | Sleeve |
| For Load Direction | Radial |
| For Shaft Diameter | 1/2" |
| Bore Dia | 0.5005" |
| Bore Dia Tolerance | 0" to 0.001" |
| For Housing ID | 5/8" |
| Outer Dia | 0.626" |
| Outer Dia Tolerance | 0" to 0.0005" |
| Length | 3/16" |
| Length Tolerance | 0" to 0.01" |
| Dynamic Radial Load | 1400 lbf |
| Static Radial Load | 1400 lbf |
| Max Speed (X1000 rpm) | 0.04 |
| Material | PTFE Plastic |
| Casing Material | 17-4 PH Stainless Steel |
| Lubrication | Not Required |
| For Shaft Type | Round |
| Shaft Mount Type | Slip Fit |
| Temperature Range | -60° to 320° F |
| RoHS | Compliant |
| REACH | Compliant |
INTERCHANGE
The LILY bearing part series FEEFKF is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
FEEFKF
