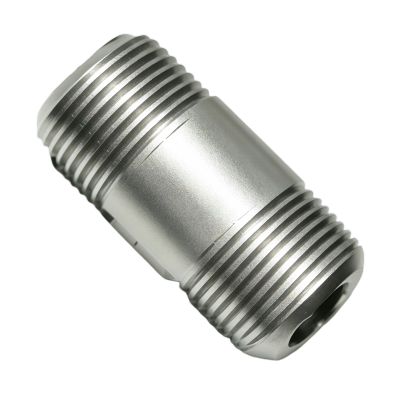

5292N12
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | FCJCNBC |
| System of Measurement | Inch |
| Shape | Straight |
| Type | Pipe |
| Schedule | 40 |
| Connection Type | Pipe |
| Connection Style | Threaded |
| Pipe Connection Type | Threaded |
| Connection | NPT Male |
| Construction | Seamless |
| Pipe Size | 3/8 |
| OD | 0.671875" |
| ID | 0.495000" |
| Wall Thickness | 0.09" |
| Number of Pieces | 100 |
| Includes | 20 fully threaded 1" Lg. nipples80 threaded-on-both-ends nipples in the following lengths: 1 1/2” (10 ea.), 2” (15 ea.), 2 1/2” (10 ea.), 3” (10 ea.), 3 1/2” (5 ea.), 4” (10 ea.), 4 1/2” (5 ea.), 5” (5 ea.), 5 1/2" (5 ea.), 6" (5 ea.) |
| Material | 230 Brass |
| For Fitting Class | 125 |
| For Fitting Material | Brass, Bronze |
| For Flange Material | Brass, Bronze |
| Specifications Met | ASME B1.20.1, ASTM B687, Fed. Spec. WW-N-351C, NSF/ANSI 61 |
| RoHS | Not Compliant |
| REACH | Not Compliant |
| For Use With | Air, Drinking Water, Natural Gas, Oil, Steam, Water |
