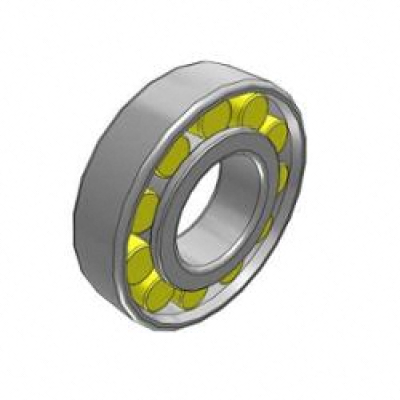

CRL 32 AMB
Part Number | CRL 32 AMB |
Brand: LILY | |
Equivalent: SKF |
System of Measurement | Inch |
Roller Bearing Type | Cylindrical |
For Load Direction | Combined |
Construction | Single Row |
Inner Ring Type | With Inner Ring |
Seal Type | Open |
Bore Dia | 4" |
Bore Dia Tolerance | +0.0002" to -0.0003" |
Outer Dia | 7.25" |
Outer Dia Tolerance | -0.0013" to -0.0018" |
Width | 1.25" |
Width Tolerance | -0.005" to 0 |
Shoulder Diameter Of Inner Ring | 0.2015" |
Raceway Diameter Of Outer Ring(E) | 6.4961" |
Chamfer Dimension r1,2(min.) | 0.126" |
Chamfer Dimension r3,4(min.) | 0.126" |
Permissible Axial Displacement(max.) | 0.0591" |
Ring Material | Chrome Steel |
Roller Material | Chrome Steel |
Cage Material | Brass cage, roller centred |
Dynamic Radial Load | 52425 lbf |
Static Radial Load | 63000 lbf |
Max Speed (X1000 rpm) | 4 |
Lubrication | Grease, Oil |
Temperature Range | -30° to 110 °C |
RoHS | Compliant |
REACH | Compliant |
Weight | 3.7 kg |
