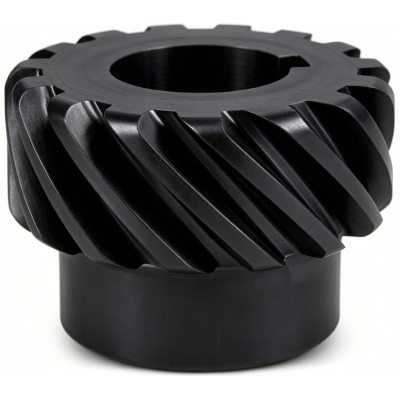

2585N16
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | CFIFNBG |
| System of Measurement | Inch |
| Gear Type | Helical |
| Component | Gear |
| Helical Gear Style | Crossed |
| Bore Type | Keyed |
| Diameter Pitch | 16 |
| Number Of Teeth | 32 |
| Helix Angle | 45 ° |
| Pressure Angle | 14.5 ° |
| Pitch Diameter | 2" |
| OD | 2.09" |
| Face Width | 0.5" |
| Overall Width | 1" |
| Bore Dia | 0.63" |
| Material | 1137 Carbon Steel |
| Teeth Heat Treatment | Hardened |
| Hub Diameter | 1.87" |
| Hub Width | 0.5" |
| Keyway Width | 0.187" |
| Keyway Depth | 0.094" |
| Set Screw Thread Size | 1/4"-20 |
| Includes | Set Screw |
| Tooth Direction | Right Hand |
| RoHS | Not Compliant |
| REACH | Not Compliant |
NOTE：All other trademarks are the property of their respective owners.
All other trademarks mentioned herein are used for the purpose of compatibility description and product identification only. Lily Bearing is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.
Design Features of CFIFNBG Gear
CFIFNBG are designed for transmitting motion between non-parallel, non-intersecting shafts—typically at 90°—offering smooth and quiet operation with reduced backlash. They use inch-based dimensions for compatibility with North American systems and are available in materials like steel or plastic to suit different load and speed requirements. CFIFNBG face width is 0.5". Its overall width is 1". Precision machining ensures reliable performance in compact or space-constrained applications.
What Benefits Can CFIFNBG Gear Provide?
- Enable smooth and quiet transmission between non-parallel, non-intersecting shafts, ideal for compact or specialized layouts.
- 14 1/2° pressure angle ensures gentle meshing, reducing backlash and wear for extended service life.
- Inch-based dimensions allow seamless integration with North American mechanical components.
- Available in various materials to meet different load, noise, and cost requirements across diverse applications.
What Can CFIFNBG Gear Be Used for?
- Compact Power Transmission: Used to transfer motion between skewed or non-parallel shafts in tight or unconventional spaces where traditional gear arrangements won’t fit.
- Precision Instruments: Ideal for measuring devices and fine mechanical systems that require smooth, quiet, and accurate movement.
- Specialized Machinery: Applied in custom equipment designs where standard gear configurations are not feasible due to layout constraints.
- Robotics and Automation: Support flexible shaft positioning in robotic joints and automated mechanisms needing precise and reliable performance.
- Light-Duty, High-Precision Applications: Suitable for aerospace, medical, and optical equipment where low torque but high positional accuracy is essential.
