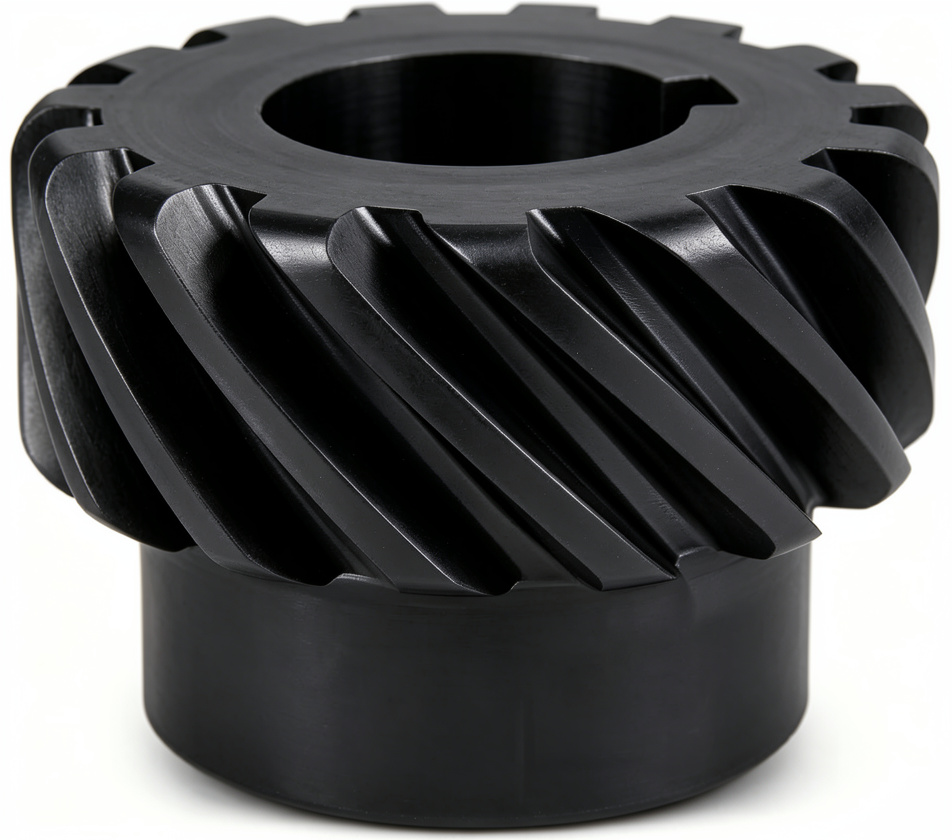

Inch Crossed Gears - 14 1/2° Pressure Angle
10 Products
Inch Crossed Gears - 14 1/2° Pressure Angle
Designed to transmit power between non-parallel and non-intersecting shafts, typically at an angle.
Part Number
Tooth Direction
Diameter Pitch
Number Of Teeth
Helix Angle
Pitch Diameter
OD
Face Width
Overall Width
Bore Dia
Teeth Heat Treatment
Hub Diameter
Hub Width
Keyway Width
Keyway Depth
Set Screw Thread Size
Price
>
Part Number
Tooth Direction
Diameter Pitch
Number Of Teeth
Helix Angle
Pitch Diameter
OD
Face Width
Overall Width
Bore Dia
Teeth Heat Treatment
Hub Diameter
Hub Width
Keyway Width
Keyway Depth
Set Screw Thread Size
Price
>
CFIFNBB
Left Hand
16
16
45 °
1"
1.09"
0.5"
1"
0.5"
Hardened
0.86"
0.5"
0.125"
0.062"
1/4"-20
$42.15
CFIFNBC
Right Hand
16
16
45 °
1"
1.09"
0.5"
1"
0.5"
Hardened
0.86"
0.5"
0.125"
0.062"
1/4"-20
$37.97
CFIFNBD
Left Hand
16
24
45 °
1.5"
1.59"
0.5"
1"
0.63"
Hardened
1.37"
0.5"
0.187"
0.094"
1/4"-20
$55.54
CFIFNBF
Left Hand
16
32
45 °
2"
2.09"
0.5"
1"
0.63"
Hardened
1.87"
0.5"
0.187"
0.094"
1/4"-20
$60.33
CFIFNBI
Right Hand
16
48
45 °
3"
3.09"
0.5"
1"
0.63"
Hardened
2.5"
0.5"
0.187"
0.094"
1/4"-20
$87.52
CFIFNCD
Right Hand
12
18
45 °
1.5"
1.62"
0.75"
1.25"
0.63"
Hardened
1.34"
0.5"
0.187"
0.094"
1/4"-20
$51.38
CFIFNBG
Right Hand
16
32
45 °
2"
2.09"
0.5"
1"
0.63"
Hardened
1.87"
0.5"
0.187"
0.094"
1/4"-20
$68.31
CFIFNCC
Left Hand
12
18
45 °
1.5"
1.62"
0.75"
1.25"
0.63"
Hardened
1.34"
0.5"
0.187"
0.094"
1/4"-20
$50.63
CFIFNBE
Right Hand
16
24
45 °
1.5"
1.59"
0.5"
1"
0.63"
Hardened
1.37"
0.5"
0.187"
0.094"
1/4"-20
$49.52
CFIFNBH
Left Hand
16
48
45 °
3"
3.09"
0.5"
1"
0.63"
Hardened
2.5"
0.5"
0.187"
0.094"
1/4"-20
$94.23
