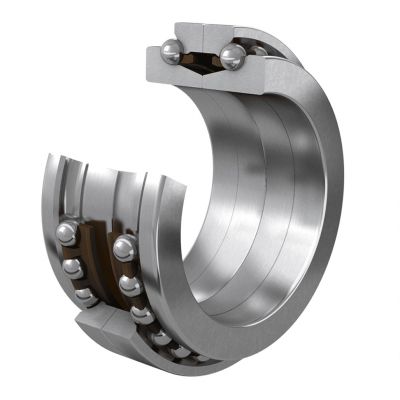

BTM 90 ATN9/HCP4CDB
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | BTM 90 ATN9/HCP4CDB |
Brand: LILY  |
Interchangeable With: SKF |
| System of Measurement | Metric |
| Bearing Type | Ball |
| Internal Design | High Speed |
| Contact Angle | 30 ° |
| For Load Direction | Combined Radial and Thrust |
| Construction | Double Direction |
| Seal Type | Open |
| Bore Dia | 90 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 140 mm |
| Outer Dia Tolerance | -0.009mm to 0 |
| Width | 45 mm |
| Width Tolerance | -0.2mm to 0 |
| Ring Material | Chrome Steel |
| Ball Material | Ceramic |
| Cage Material | Nylon |
| Dynamic Radial Load | 8768 lbf |
| Static Radial Load | 20570 lbf |
| Max Speed (X1000 rpm) | 10.1 |
| Lubrication | Lubricated |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | P4 (ABEC-7) |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 2.3 kg |
Design Features of BTM 90 ATN9/HCP4CDB Bearing
BTM 90 ATN9/HCP4CDB Bearing is constructed with a raceway, a single outer ring, two inner rings, and cages. BTM 90 ATN9/HCP4CDB Bearing is known for its high-speed and high-precision. BTM 90 ATN9/HCP4CDB bore dia is 90 mm. Its out dia is 140 mm. BTM 90 ATN9/HCP4CDB width is 45 mm. It offers several key benefits and capabilities for a multitude of mechanical applications.
What Benefits Can BTM 90 ATN9/HCP4CDB Bearing Provide?
- Bidirectional Load Handling: It is capable of handling significant axial loads in both directions, making it versatile for various applications.
- High Precision: The bearing is manufactured with tight tolerances for high accuracy and smooth operation.
- High Speed: It is suitable for high-speed applications due to its design and materials.
- Increased Stiffness and Rigidity: The robust design minimizes deformation under load, maintaining alignment and precision.
What Can BTM 90 ATN9/HCP4CDB Bearing Be Used for?
BTM 90 ATN9/HCP4CDB Bearing is suitable for a wide range of applications due to its high-precision and high-speed , such as:
- Machine Tool Spindles: It can provide the necessary precision and stability for the high-speed spindles in CNC milling and turning machines.
- Precision Instruments: It is used to support precise movement and measurement, essential for quality control and inspection tasks.
- Robotics and Automation: It provides the stiffness and accuracy required for the precise movements of robotic arms in manufacturing and assembly lines.
- High-Speed Pumps and Compressors: It can support high-speed rotation in pumps used for fluid transfer in industrial and commercial applications.
