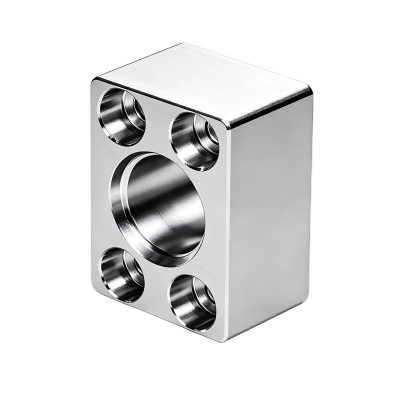

1723N27
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | BHCDNCH |
| System of Measurement | Inch |
| Shape | Straight |
| Type | Flange, Adapter |
| Material | 316/316L Stainless Steel |
| Flange Type | One Piece |
| Flange Code | 61 |
| Fabrication | Machined |
| Connection Type | Pipe |
| Connection Style | Threaded × Flanged |
| Thread Type | UN/UNF (SAE Straight) |
| Thread Size | 2 1/2"-12 |
| Gender | Female |
| SAE Flange Size | 2 |
| Dash Size | 32 |
| Flanged Connection Surface | Flat |
| Maximum Pressure | 3,000 psi @ 72° F |
| Flange Height | 4" |
| Flange Width | 3.25" |
| Flange Depth | 0.703125" |
| Mounting Hardware Included | No |
| For Bolt Thread Type | Inch |
| For Bolt Diameter | 0.5" |
| Bolt Hole Diameter | 0.531000" |
| Bolt Hole Number of | 4 |
| Bolt Hole Center -to-Center | 1.688", 3.062" |
| Specifications Met | ISO 6162, SAE J518 |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
| For Use With | Hydraulic Fluid |
