868D-854V

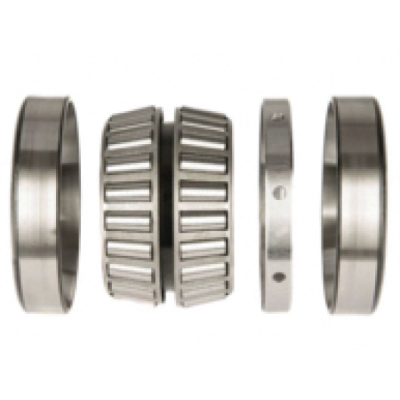

868D-854V TDI (Two-Row Double Inner Race) (Imperial)
868D-854V TDI (Two-Row Double Inner Race) (Imperial)
Price $ 0.00
Part Number 868D-854V
Type Bearing
Cone Part Number 868D
Cup Part Number 854V
System of Measurement Inch
Bearing Type Roller
Roller Bearing Type Tapered Roller
For Load Direction Combined Radial and Thrust
Construction Double Row
Seal Type Open
Cups Type Standard
Series 855
Bore Dia 4"
Bore Dia Tolerance +0.025" to 0
Outer Dia 7.5"
Outer Dia Tolerance +0.025" to 0
Double Cone Width 5"
Double Cone Width Tolerance +0.076" to -0.254"
Cup Width 1.75"
Cup Width Tolerance +0.051" to -0.254"
Bearing Width Across Cups 4.6249"
Bearing Width Across Cups Tolerance +0.203" to 0
Cone Backface ToClear Radius 0.06"
Cup Backface ToClear Radius 0.13"
Cup Frontface Backing Diameter 4.57"
Cup Backface Backing Diameter 6.69"
Dynamic Radial Load 179000 lbf
Ring Material 52100 Chrome Steel
Roller Material 52100 Chrome Steel
Cage Material Steel
Dynamic Radial Rating (One Row 90 million revolutions) 26700 lbf
Dynamic Thrust Rating (90 million revolutions) 15300 lbf
Dynamic Radial Rating (Two Row 90 million revolutions) 46400 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 30.3 lb
