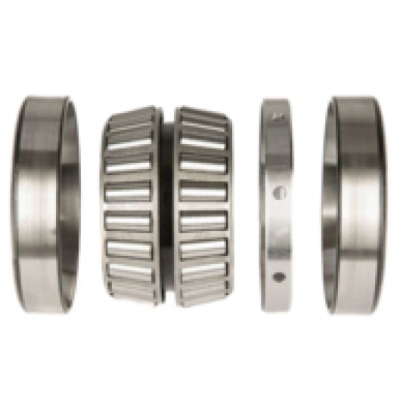

868D-854
Price $ 0.00
| Part Number | 868D-854 |
| Type | Bearing |
| Cone Part Number | 868D |
| Cup Part Number | 854 |
| System of Measurement | Inch |
| Bearing Type | Roller |
| Roller Bearing Type | Tapered Roller |
| For Load Direction | Combined Radial and Thrust |
| Construction | Double Row |
| Seal Type | Open |
| Cups Type | Standard |
| Series | 855 |
| Bore Dia | 4" |
| Bore Dia Tolerance | +0.025" to 0 |
| Outer Dia | 7.5" |
| Outer Dia Tolerance | +0.025" to 0 |
| Double Cone Width | 5" |
| Double Cone Width Tolerance | +0.076" to -0.254" |
| Cup Width | 1.75" |
| Cup Width Tolerance | +0.051" to -0.254" |
| Bearing Width Across Cups | 4.6249" |
| Bearing Width Across Cups Tolerance | +0.203" to 0 |
| Cone Backface ToClear Radius | 0.06" |
| Cup Backface ToClear Radius | 0.13" |
| Cup Frontface Backing Diameter | 4.57" |
| Cup Backface Backing Diameter | 6.69" |
| Dynamic Radial Load | 179000 lbf |
| Ring Material | 52100 Chrome Steel |
| Roller Material | 52100 Chrome Steel |
| Cage Material | Steel |
| Dynamic Radial Rating(One Row 90 Million Revolutions) | 26700 lbf |
| Dynamic Thrust Rating(90 Million Revolutions) | 15300 lbf |
| Dynamic Radial Rating(Two Row 90 Million Revolutions) | 46400 lbf |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | Standard (Available in C3/C4/C5) |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 30.3 lb |
})
