71964 ACDMA/P4A

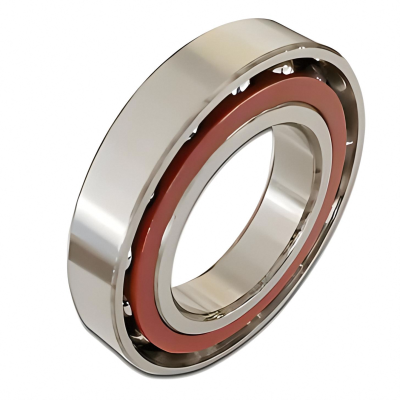

71964 ACDMA/P4A Super Precision Angular Contact Ball Bearings
Price $ 11001.74
Part Number 71964 ACDMA/P4A
Equivalent to Manufacturer SKF
System of Measurement Metric
Part No 7964 ACDMA/P4A
Bearing Type Ball
Internal Design High Capacity
Contact Angle 25°
Lubrication Hole NO
For Load Direction Combined Radial and Thrust
Construction Single Row
Seal Type Open
Bore Dia 320 mm
Bore Dia Tolerance -0.016mm to 0
Outer Dia 440 mm
Outer Dia Tolerance -0.02mm to 0
Width 56 mm
Width Tolerance -0.3mm to 0
Shoulder Diameter Inner Ring (Large Side Face)(d1) 357 mm
Shoulder Diameter Inner Ring (Small Side Face)(d2) 357 mm
Shoulder Diameter Outer Ring (Large Side Face)(D1) 403 mm
Chamfer Dimension (r1 2)(min) 3 mm
Chamfer Dimension (r3 4)(min) 1.1 mm
Distance Pressure Point (a) 116.9 mm
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome Steel
Cage Material Cotton fabric reinforced phenolic resin
Dynamic Radial Load 351 kN
Static Radial Load 585 kN
Max Speed (X1000 rpm) 3.6
Lubrication Lubricated
Temperature Range -30° to 110 °C
ABEC Rating P4 (ABEC-7)
ROHS Compliant
REACH Compliant
Ball Dia 38.1 mm
Ball Qty 27
Weight 24 kg
